OEM Ground Distribution: Grounds: G203

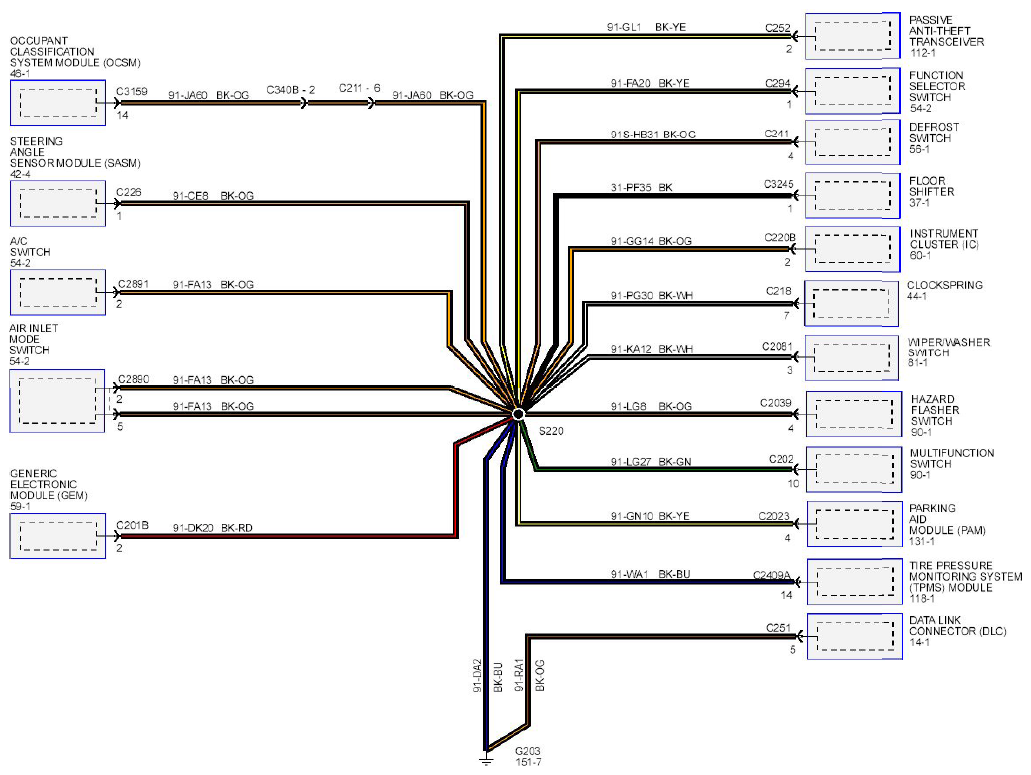

Fig 1: Grounds (G203) - Circuit Diagram

G09083606

Courtesy of FORD MOTOR CO.
