OEM Ground Distribution: Grounds: G200

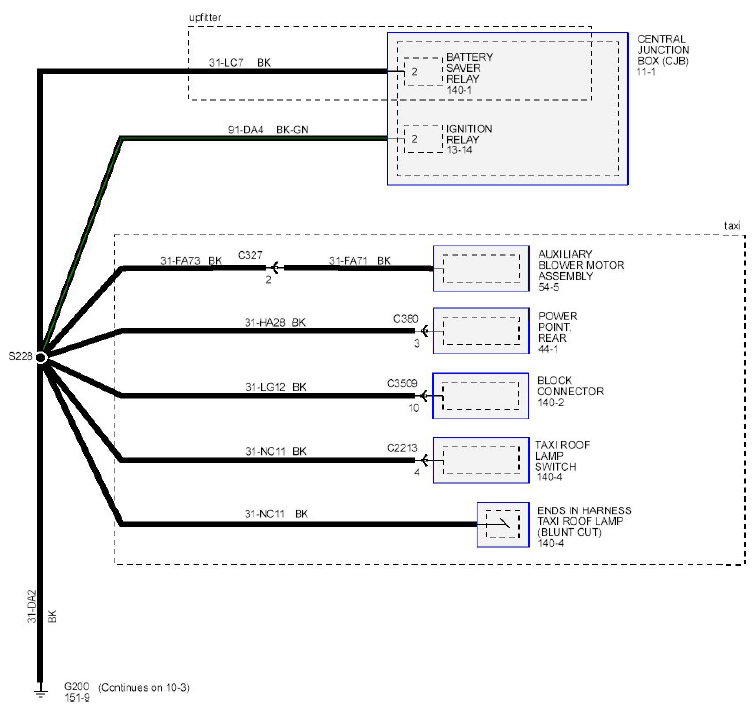

Fig 1: Grounds (G200) - Circuit Diagram

G09083605

Courtesy of FORD MOTOR CO.
