Module Communications Network

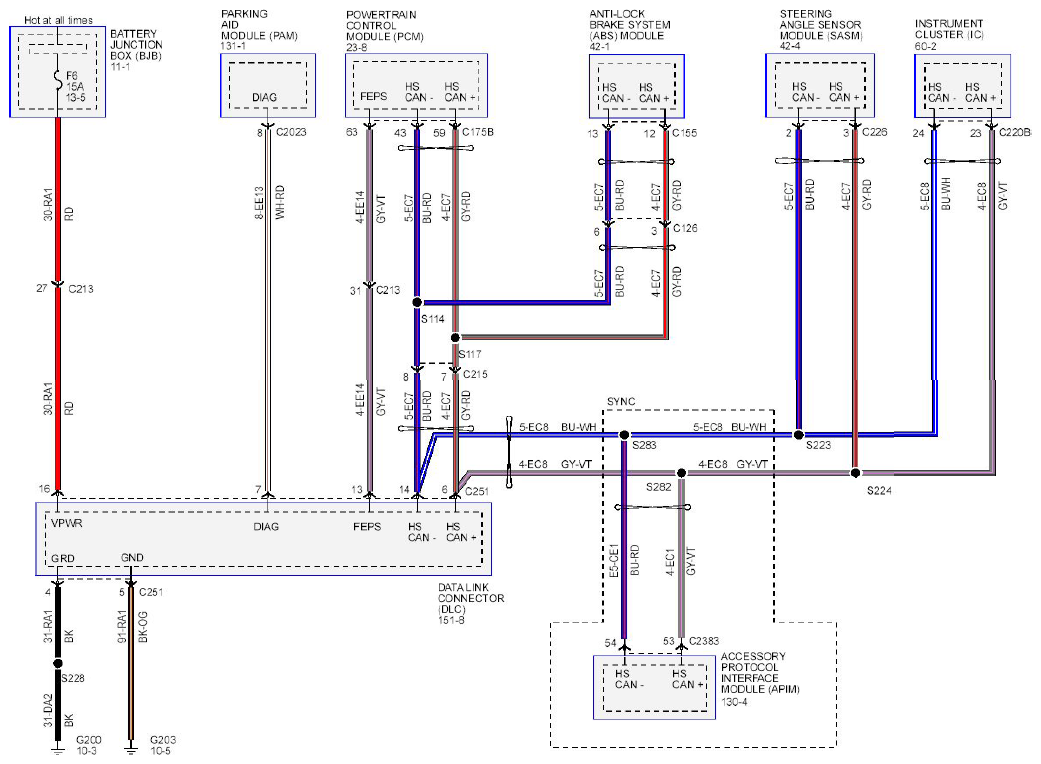

Fig 1: Module Communications Network - Circuit Diagram (1 Of 2)
G09083630Courtesy of FORD MOTOR CO.

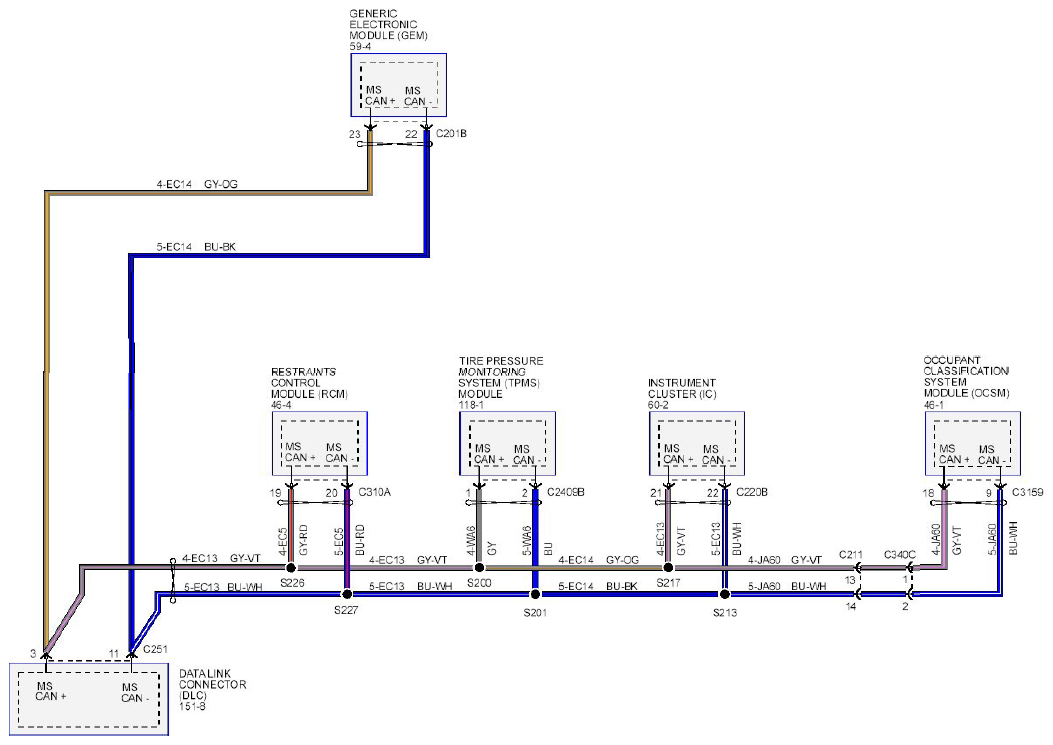

Fig 2: Module Communications Network - Circuit Diagram (2 Of 2)
G09083631Courtesy of FORD MOTOR CO.
