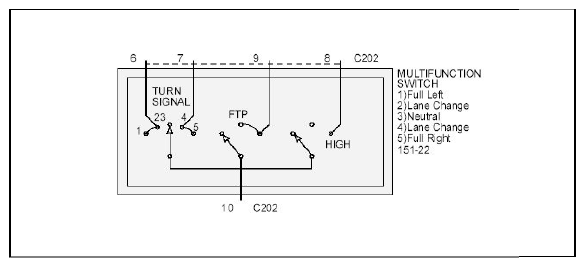

Home >> Ford >> 2013 >> Transit Connect XL >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> OEM Wiring Diagrams Component Testing >> Component Testing >> Multifunction Switch >> Schematic
