Selector Lever Cable - Column Shift: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Remove the steering column shrouds. Refer to STEERING COLUMN .

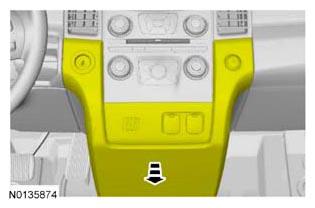

  3. G08662776

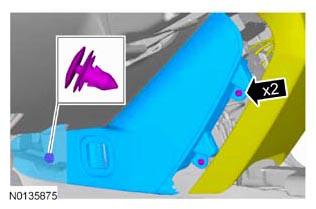

  4. G08662777

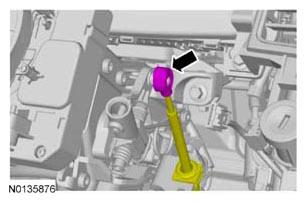

  5. G08662586

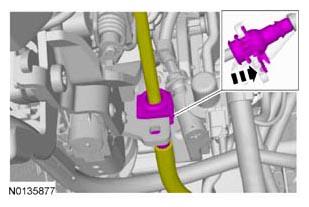

  6. G08662587
  7. G08616251
  8. Remove the ACL and outlet pipe. Refer to INTAKE AIR DISTRIBUTION & FILTERING .

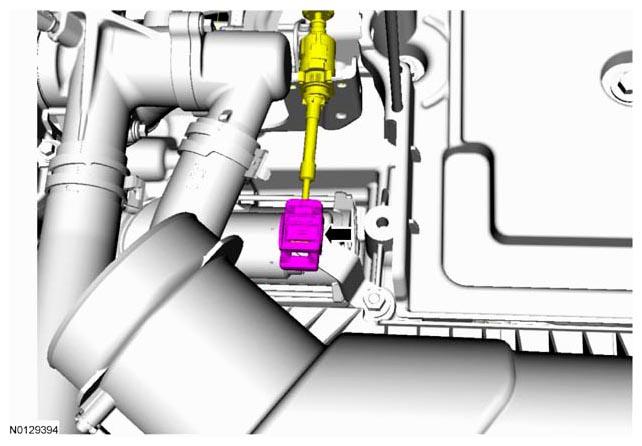

  9. G08662781
  10. G07430632
  11. G08616255

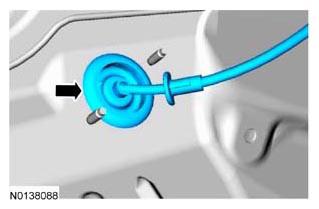

  12. G08662784
