Occupant Classification Sensor: Removal

Seat with weight sensor bolt OCS

1. NOTE: The OCS is part of the front passenger seat track assembly and is not serviced separately.

   Remove the front passenger seat track. Refer to SEATING .

   Seat with bladder OCS

   NOTE: To prevent system failure, it is necessary to carry out the OCS reset when a front passenger seat cushion is disassembled, a new seat cushion cover installed or an OCS service kit is installed. A scan tool is used to carry out the OCS reset.
   NOTE: An OCS service kit has the electrical connector glued to the OCSM. It cannot and should not be disconnected or altered.

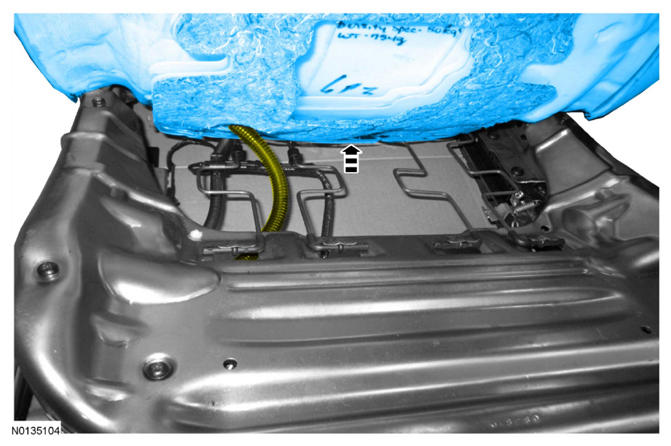

2. Remove the front passenger seat cushion cover. Refer to SEATING .

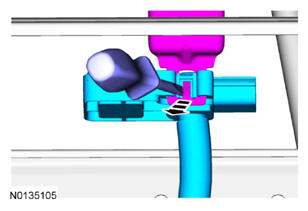

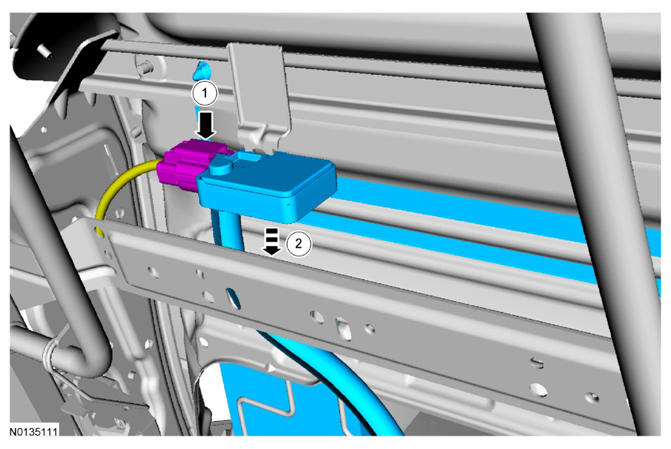

3. If equipped with heated seat.
