Occupant Classification Sensor: Installation

  1. G08615812

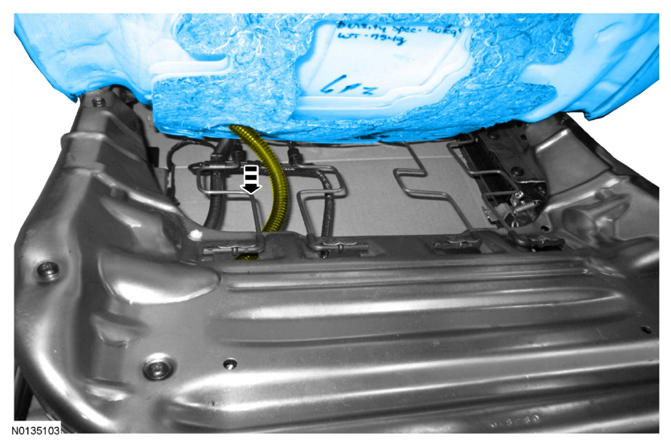

  2. WARNING: Occupant Classification System (OCS) parts are calibrated as an assembly and must only be replaced in the configuration they are sold. Never separate parts of an assembly. Failure to follow this instruction may result in incorrect operation of the OCS and increases the risk of serious personal injury or death in a crash.
    NOTE: Failure to correctly route the OCS components may cause component failure and incorrect operation of the OCS.
    G08665186

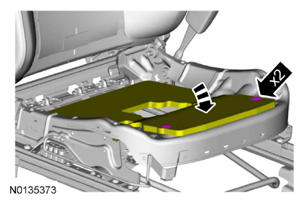

  3. G08665187

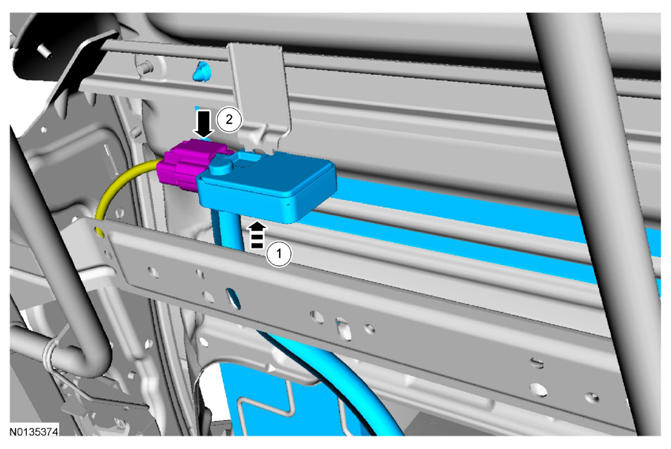

  4. G08665188

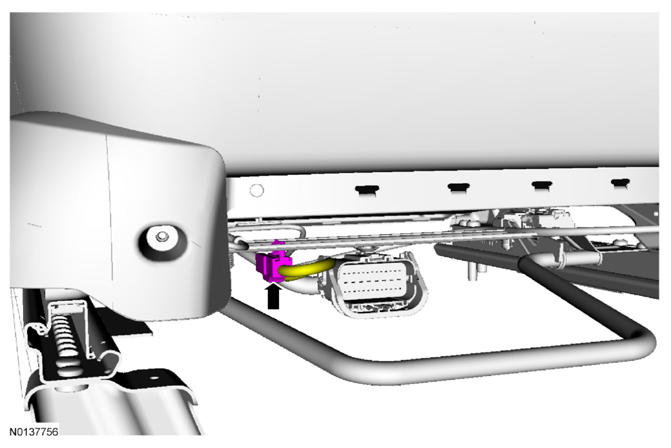

  5. If equipped with heated seat.
    G08665180
  6. Install the front passenger seat cushion cover. Refer to SEATING .
  7. Repower the SRS. Do not  prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
  8. Carry out OCS reset. Refer to OCCUPANT CLASSIFICATION SENSOR (OCS) SYSTEM RESET .
  9. NOTE: A prepaid return postcard is provided with a new OCS service kit. The serial number for the new part and the VIN must be recorded and sent to Ford Motor Company.

    If a new OCS service kit was installed, fill out the necessary information on the OCS traceability card and return it along with the complete inoperative OCS to Ford Motor Company.

    • When returning the inoperative OCS, include: foam pad, bladder, pressure sensor and hose.
