Repowering Procedure

Vehicles With Ignition Switch

1. Turn the ignition from OFF to ON.
2. Install RCM fuse 41 (7.5A) to the BCM and close the cover.
3. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any airbag when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

   Connect the battery ground cable.

4. Prove out the SRS as follows:

   With the ignition OFF, wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS fault is present, the air bag warning indicator will:

   • fail to light.
   • remain lit continuously.
   • flash.

   The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required to complete testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS faults.

   Vehicles With Push-Button Start System

5. Install RCM fuse 41 (7.5A) to the BCM and install the cover.
6. Remove BJB relay 88 (run/start relay).

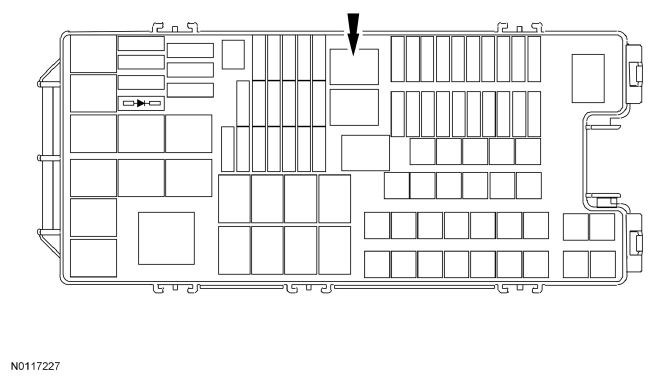

   Fig 1: Locating BJB Relay 88 (Run/Start Relay)

   Courtesy of FORD MOTOR CO.
7. Install a 30A fused jumper wire in BJB relay 88 (run/start relay) cavities 3 and 5, as shown below.

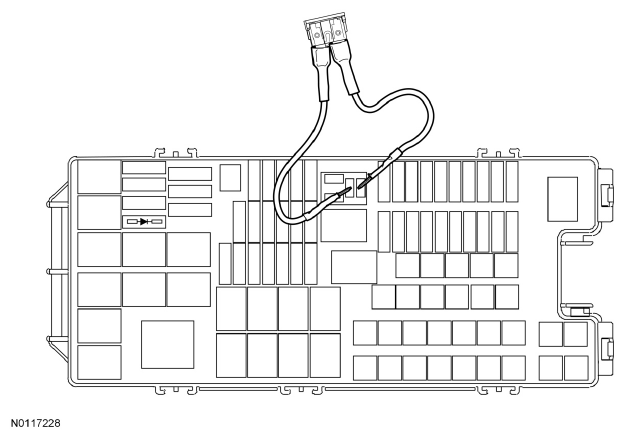

   Fig 2: Connecting 30A Fused Jumper Wire In BJB Run/Start Relay Cavities 3 And 5

   Courtesy of FORD MOTOR CO.
8. WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any airbag when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.

   Connect the battery ground cable.

9. Wait at least 30 seconds, then remove the fused jumper wire from the BJB.
10. Install BJB relay 88 (run/start relay) and cover.
11. Prove out the SRS as follows:

    With the ignition OFF, wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS fault is present, the air bag warning indicator will:

    • fail to light.
    • remain lit continuously.
    • flash.

    The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required to complete testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS faults.

12. Clear all CMDTCs from the RCM and OCSM.
