Wheel Speed Sensor, Left Front Connector End View (C150)

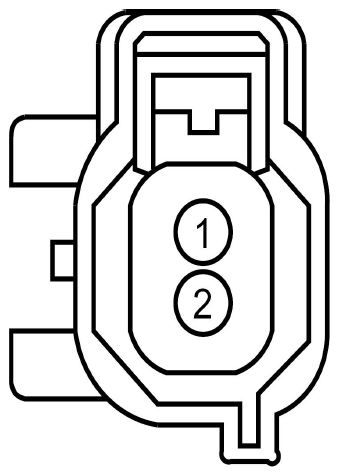

Fig 1: Identifying Wheel Speed Sensor (Left Front) Connector (C150)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA03 (VT-WH)	20	SENSOR - WHEEL SPEED LEFT FRONT
2	RCA17 (YE)	20	CTRL MOD. - SENSOR WHEEL SPEED LEFT FRONT

Available Pigtail Kits

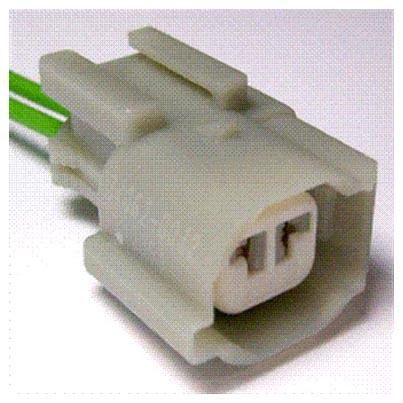

Pigtail Kit Part Number WPT-1116	Service Part Number: AU2Z-14S411-BJA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Running Board Sensor - Knock Sensor - Speed Sensor - Water in Fuel
