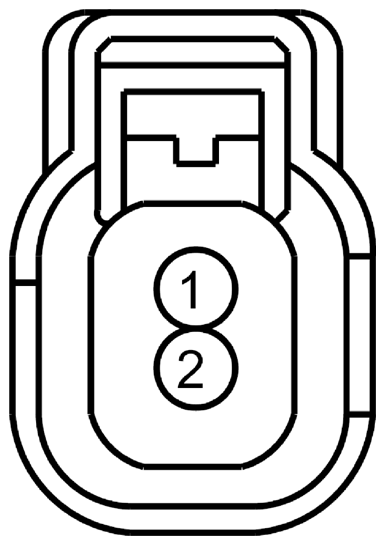

Washer Fluid Level Switch Connector End View (C138)

Fig 1: Identifying Washer Fluid Level Switch Connector (C138)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CMC20 (VT)	20	SWITCH - LOW LEVEL WASHER FLUID
2	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT

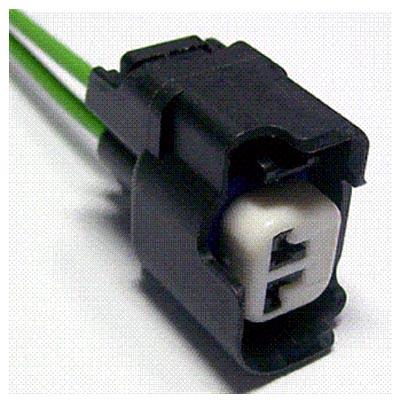

Available Pigtail Kits

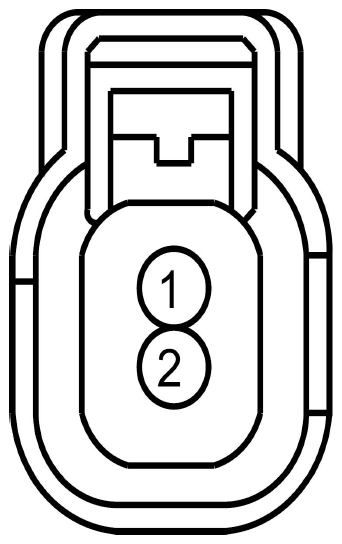

Pigtail Kit Part Number WPT-1217	Service Part Number: AU2Z-14S411-AXA  Gauge: 16  Pin material: Silver  Cavities: 2  Vehicle Uses Lamp - Rear Park Lamp - Reverse Lamp - Side Marker Sensor - Washer Fluid level Switch - Windshield Wiper/Washer
