Transfer Case Fluid Temperature Sensor Connector And View (C1831)

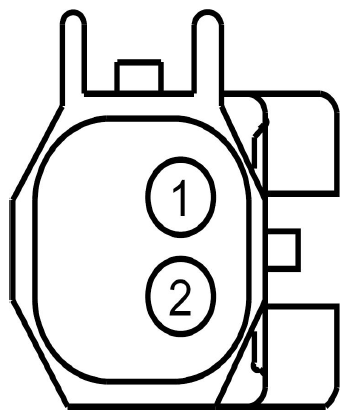

Fig 1: Identifying Transfer Case Fluid Temperature Sensor Connector (C1831)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VET27 (BN)	18	SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT)
2	RE407 (YE-VT)	18	CTRL MOD. - POWERTRAIN # SIGNAL RETURN COWL (SIGRTN) (ATT)

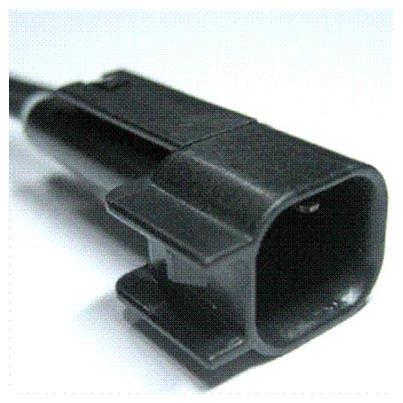

Available Pigtail Kits
Pigtail Kit Part Number WPT-1193	Service Part Number: 3U2Z-14S411-DCAB  Gauge: 16  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Element - Heated Seat Lamp - CHMSL (Center High Mount Stop Lamp) Lamp - Fog/Driving Lamp - Side Marker (Rear Fender) Mirror - Sideview Sensor - Crash (Engine Compartment) Speaker - Tweeter - LH - Front Speaker - Tweeter - RH - Front
