Task Lamp Connector And View (C9049)

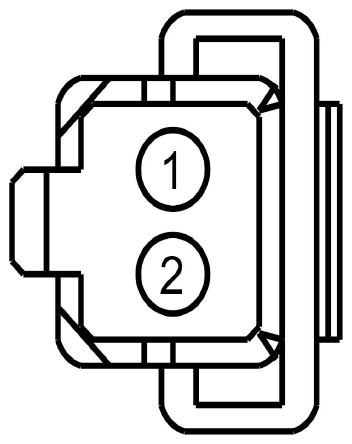

Fig 1: IDentifying Task Lamp Connector (C9049)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CLN09 (YE-GN)	22	RELAY - BATTERY SAVER (E.G. SWITCH OFF INTERIOR LIGHTING)
2	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)

Available Pigtail Kits

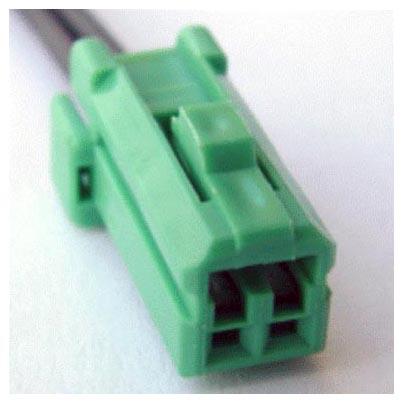

Pigtail Kit Part Number WPT-1197	Service Part Number: 3U2Z-14S411-PFB  Gauge: 20  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Mirror - Vanity Sensor - Speed Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Brake Pressure Switch - Park Brake Switch - Speed Control Switch - Speed Control Deactivation Switch - Stop Lamp Switch - Visor

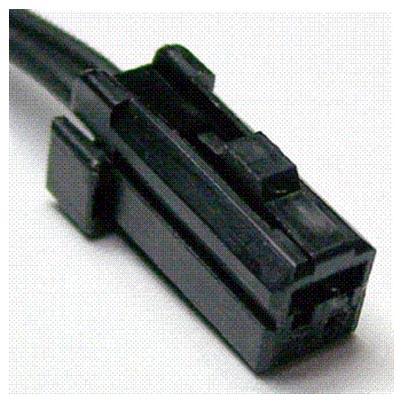

Pigtail Kit Part Number WPT-479	Service Part Number: 3U2Z-14S411-PFA  Gauge: 20  Pin material: Tin  Cavities: 2  Vehicle Uses Mirror - Vanity Switch - Brake Pedal Position Switch - Brake Pressure Switch - Park Brake Switch - Speed Control Switch - Speed Control Deactivation Switch - Stop Lamp Switch - Visor
