Power Window Motor, Left Front Connector End View (C524)

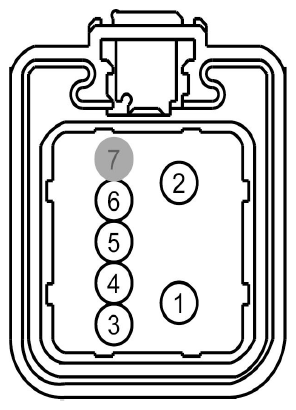

Fig 1: Identifying Power Window Motor (Left Front) Connector (C524)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	SBP01 (RD)	12	FUSE - 1 OR CIRCUIT BREAKER
2	GD233 (BK)	12	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)
3	CBP32 (GN-VT)	22	FUSE - 32 OR CIRCUIT BREAKER
4	CPW11 (BU-GY)	22	SWITCH - POWER WINDOW DRIVER # DRIVER UP
5	CPW10 (YE-VT)	22	SWITCH - POWER WINDOW DRIVER # DRIVER DOWN
6	CPW01 (BN-BU)	22	CTRL MOD. - POWER WINDOW GLOBAL SET +
7	*	*	Not Used

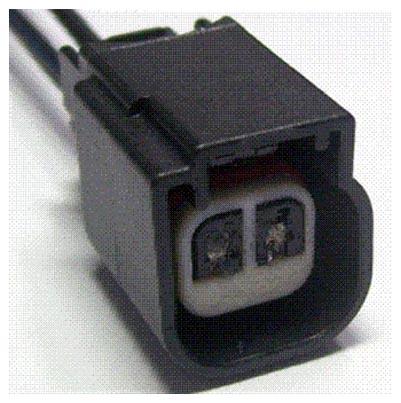

Available Pigtail Kits
Pigtail Kit Part Number WPT-1209	Service Part Number: BU2Z-14S411-ASA  Gauge: 12 18  Pin material: Tin & Silver  Cavities: 7  Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear
