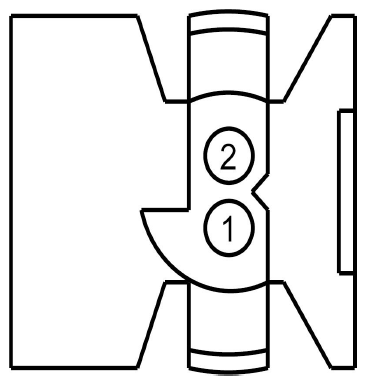

Passenger Air Bag Module Connector End View (C256B)

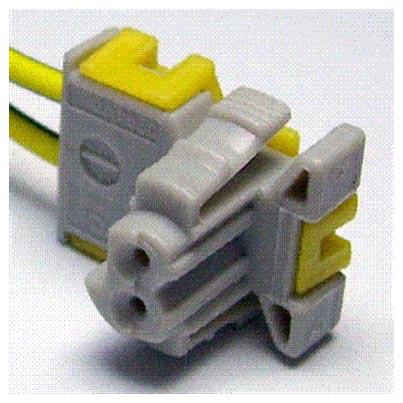

Fig 1: Identifying Passenger Air Bag Module Connector (C256B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CR104 (YE-GY)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 +
2	RR104 (WH-BU)	20	CTRL MOD. - AIR BAG FRONT PASSENGER 2 -

Available Pigtail Kits
Pigtail Kit Part Number WPT-1223	Service Part Number: BU2Z-14S411-BFA  Gauge: 20  Pin material: FCI - Airbag  Cavities: 2  Vehicle Uses Squib - Airbag (Passenger)
