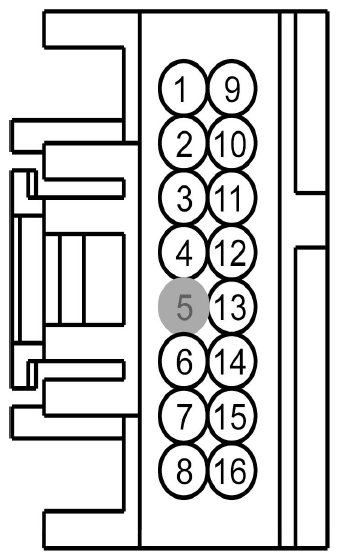

Parking Aid Module (PAM) Connector And View (C4014)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP34 (VT-BN) | 22 | FUSE - 34 OR CIRCUIT BREAKER | |
| 2 | CMP09 (BN-BU) | 18 | CTRL MOD. - PARKING AID # SOUNDER REAR + | |
| 3 | VDB04 (BU) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 4 | GD347 (BK-VT) | 22 | GROUND - PILLAR C OR QUARTER PANEL LEFT (BC3T) | |
| 5 | * | * | Not Used | |
| 6 | RMP09 (BU-GN) | 18 | CTRL MOD. - PARKING AID # SOUNDER REAR - | |
| 7 | VMP20 (GY-OG) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT LEFT SIDE | |
| 8 | VMP21 (WH-BN) | 22 | SENSOR - PARKING AID # ACTIVE PARK ASSIST (AUTOPARK) FRONT RIGHT SIDE | |
| 9 | LMP07 (BU-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR + | |
| 10 | CMP18 (GN-BN) | 22 | SWITCH - PARKING AID | |
| 11 | VDB05 (WH) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 12 | RMP07 (GN-WH) | 22 | CTRL MOD. - PARKING AID # SENSORS REAR - | |
| 13 | VMP16 (YE-GY) | 22 | SENSOR - PARKING AID # REAR # (RIGHT INNER) | |
| 14 | VMP14 (WH-OG) | 22 | SENSOR - PARKING AID # REAR # (LEFT INNER OR MIDDLE) | |
| 15 | VMP15 (YE-GN) | 22 | SENSOR - PARKING AID # REAR # (LEFT OUTER) | |
| 16 | VMP17 (YE-OG) | 22 | SENSOR - PARKING AID # REAR # (RIGHT OUTER) |
| Available Pigtail Kits | |

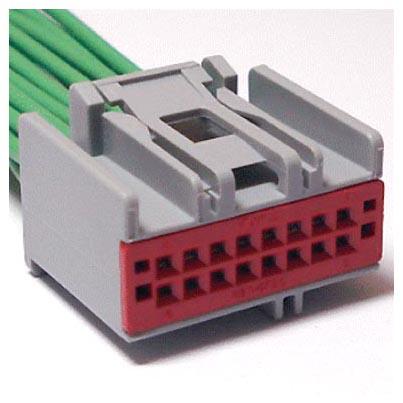

| Pigtail Kit Part Number WPT-221 | Service Part Number: 3U2Z-14S411-DPA Gauge: 18 Pin material: Tin Cavities: 16 Vehicle Uses
|

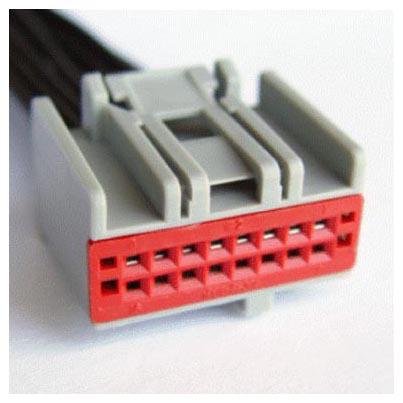

| Pigtail Kit Part Number WPT-968 | Service Part Number: 3U2Z-14S411-DPB Gauge: 18 Pin material: Silver Cavities: 16 Vehicle Uses
|
