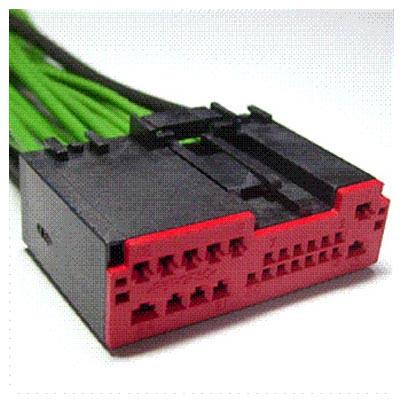

| 1 |
GD233 (BK) |
22 |
GROUND - COWL SIDE/PILLAR A LEFT (BC3T) |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
CPW14 (VT-WH) |
22 |
SWITCH - POWER WINDOW DRIVER # PASSENGER LOCK OUT (ENABLE) |
|
| 4 |
CPM23 (GY) |
22 |
SWITCH - POWER MIRROR # COMMON ALL MOTORS (LEFT AND RIGHT) |
|
| 5 |
CPM16 (BN-BU) |
22 |
SWITCH - POWER MIRROR # LEFT MIRROR RIGHTWARD (IF PLUS) |
|
| 6 |
CPM17 (BU-GN) |
22 |
SWITCH - POWER MIRROR # LEFT MIRROR UPWARD (IF PLUS) |
|
| 7 |
CPM20 (BN-WH) |
22 |
SWITCH - POWER MIRROR # RIGHT MIRROR RIGHTWARD (IF PLUS) |
|
| 8 |
CPM21 (YE-VT) |
22 |
SWITCH - POWER MIRROR # RIGHT MIRROR UPWARD (IF PLUS) |
|
| 9 |
CPW74 (YE-GN) |
22 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER LOCK OUT BYPASS |
|
| 10 |
CBP32 (GN-VT) |
22 |
FUSE - 32 OR CIRCUIT BREAKER |
|
| 11 |
CPW12 (GN-OG) |
22 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER DOWN |
|
| 12 |
CPW13 (BN-YE) |
22 |
SWITCH - POWER WINDOW DRIVER # FRONT PASSENGER UP |
|
| 13 |
CPW17 (BN-GN) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR RIGHT DOWN |
|
| 14 |
CPW18 (GY-VT) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR RIGHT UP |
|
| 15 |
CPW16 (BU-OG) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT UP |
|
| 16 |
CPW15 (YE) |
22 |
SWITCH - POWER WINDOW DRIVER # REAR LEFT DOWN |
|
| 17 |
CPW11 (BU-GY) |
22 |
SWITCH - POWER WINDOW DRIVER # DRIVER UP |
|
| 18 |
CPW10 (YE-VT) |
22 |
SWITCH - POWER WINDOW DRIVER # DRIVER DOWN |
|
| 19 |
* |
* |
Not Used |
|
| 20 |
* |
* |
Not Used |
|
