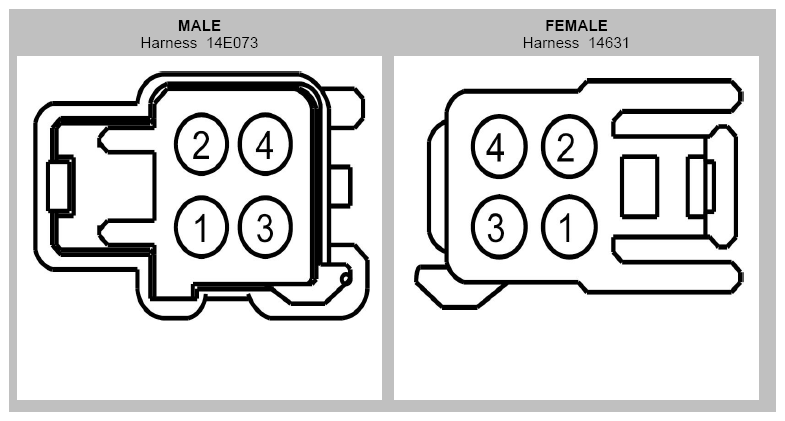

Inline Connector End View (C573)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CLN44 (OG) | 22 | 14E073 |
| 1 | CLN44 (OG) | 22 | 14E073 |
| 1 | VLN48 (YE-OG) | 22 | 14631 |
| 2 | CLN45 (GN) | 22 | 14E073 |
| 2 | CLN45 (GN) | 22 | 14E073 |
| 2 | VLN49 (YE-GN) | 22 | 14631 |
| 3 | CLN46 (BU) | 22 | 14E073 |
| 3 | CLN46 (BU) | 22 | 14E073 |
| 3 | VLN50 (YE-BU) | 22 | 14631 |
| 4 | RLN44 (BN) | 22 | 14E073 |
| 4 | RLN44 (BN) | 22 | 14E073 |
| 4 | RLN44 (BN) | 22 | 14631 |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1076 | Service Part Number: 3U2Z-14S411-BUB Gauge: 14 Pin material: Tin (greased) Cavities: 4 Vehicle Uses:
|
