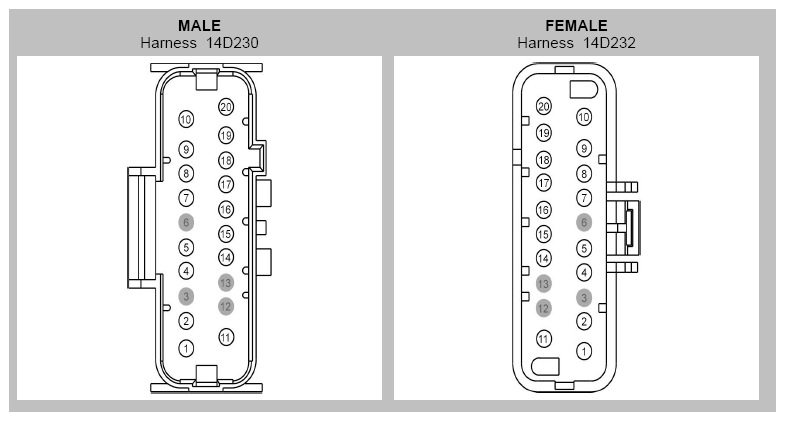

Inline Connector End View (C340)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPS08 (VT-OG) |
16 |
14D232 |
| 1 |
CPS40 (VT-GY) |
16 |
14D230 |
| 2 |
CPS18 (BN-GN) |
18 |
14D232 |
| 2 |
CPS18 (BN-GN) |
20 |
14D232 |
| 2 |
CPS20 (VT) |
20 |
14D230 |
| 3 |
* |
* |
14D232 |
| 3 |
VDB06 (GY-OG) |
20 |
14D230 |
| 4 |
CHS01 (GY-VT) |
16 |
14D230 |
| 4 |
CHS01 (GY-VT) |
16 |
14D232 |
| 4 |
CHS06 (BU-BN) |
14 |
14D230 |
| 5 |
CPT36 (BU-WH) |
20 |
14D230 |
| 5 |
CPT36 (WH) |
20 |
14D232 |
| 6 |
* |
* |
14D230 |
| 6 |
VPS12 (GY-OG) |
20 |
14D232 |
| 7 |
RHS15 (GY-BN) |
20 |
14D232 |
| 7 |
RHS20 (GN-BU) |
18 |
14D230 |
| 8 |
SBX06 (GY-RD) |
18 |
14D232 |
| 8 |
SBX06 (GY-RD) |
20 |
14D230 |
| 9 |
RHS03 (GY-OG) |
16 |
14D232 |
| 9 |
RHS08 (VT-WH) |
16 |
14D230 |
| 10 |
RHS01 (WH-VT) |
16 |
14D232 |
| 10 |
RHS06 (WH) |
14 |
14D230 |
| 11 |
CHS03 (GN-BN) |
16 |
14D232 |
| 11 |
CHS08 (BN-YE) |
16 |
14D230 |
| 12 |
* |
* |
14D232 |
| 12 |
VDB07 (VT-OG) |
20 |
14D230 |
| 13 |
* |
* |
14D230 |
| 13 |
RPS13 (GN-OG) |
20 |
14D232 |
| 14 |
VHS35 (VT-OG) |
20 |
14D232 |
| 14 |
VHS36 (YE-BU) |
18 |
14D230 |
| 15 |
VHS16 (BU-GN) |
20 |
14D232 |
| 15 |
VHS21 (BU-WH) |
18 |
14D230 |
| 16 |
CPS64 (BN-VT) |
20 |
14D232 |
| 16 |
CPS88 (GY-OG) |
20 |
14D230 |
| 17 |
GD903 (BK-WH) |
14 |
14D230 |
| 17 |
GD903 (BK-WH) |
16 |
14D230 |
| 17 |
GD904 (BK-BU) |
16 |
14D232 |
| 18 |
CPS65 (WH-GN) |
20 |
14D232 |
| 18 |
CPS89 (BU-BN) |
20 |
14D230 |
| 19 |
CPS07 (GY-BN) |
16 |
14D232 |
| 19 |
CPS39 (GY-YE) |
16 |
14D230 |
| 20 |
CPS19 (GY-VT) |
18 |
14D232 |
| 20 |
CPS19 (GY-VT) |
20 |
14D232 |
| 20 |
CPS21 (WH-OG) |
20 |
14D230 |
