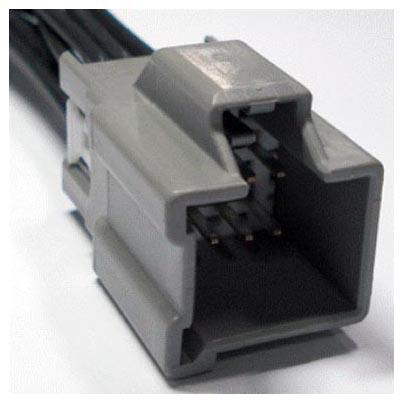

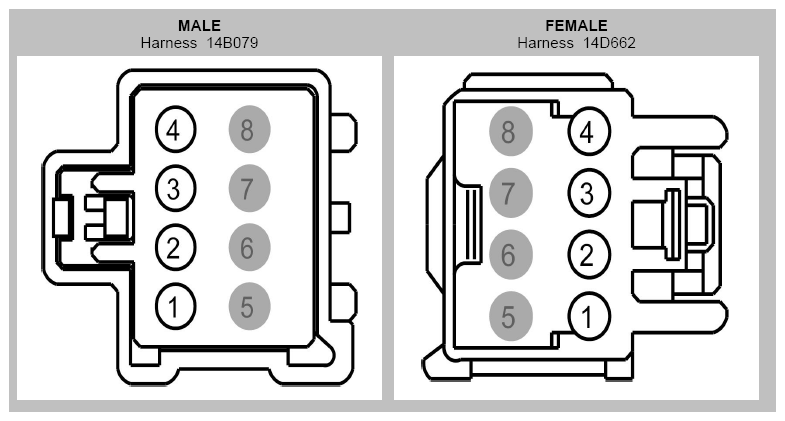

Inline Connector End View (C314)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CLN48 (YE-OG) | 22 | 14D662 |
| 1 | VLN48 (YE-OG) | 22 | 14B079 |
| 2 | CLN49 (YE-GN) | 22 | 14D662 |
| 2 | VLN49 (YE-GN) | 22 | 14B079 |
| 3 | CLN50 (YE-BU) | 22 | 14D662 |
| 3 | VLN50 (YE-BU) | 22 | 14B079 |
| 4 | RLN44 (BN) | 22 | 14D662 |
| 4 | RLN44 (BN) | 22 | 14B079 |
| 5 | * | * | 14D662 |
| 5 | VLN48 (YE-OG) | 22 | 14B079 |
| 6 | * | * | 14D662 |
| 6 | VLN49 (YE-GN) | 22 | 14B079 |
| 7 | * | * | 14D662 |
| 7 | VLN50 (YE-BU) | 22 | 14B079 |
| 8 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1034 | Service Part Number: 3U2Z-14S411-ZTB Gauge: 14 Pin material: Tin Cavities: 8 Vehicle Uses:
|
