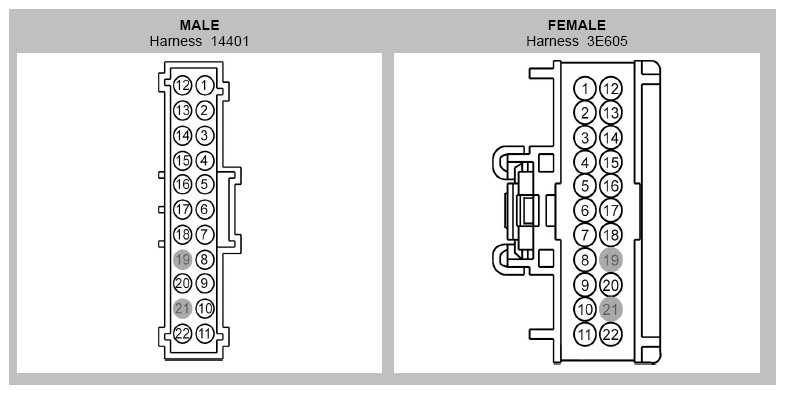

Inline Connector End View (C263)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDB04 (WH-BU) |
22 |
|
| 2 |
GD375 (BK-BU) |
22 |
|
| 3 |
VLN36 (GY-OG) |
22 |
3E605 |
| 3 |
VLN36 (GY-OG) |
26 |
14401 |
| 4 |
CLS34 (GY) |
22 |
3E605 |
| 4 |
CLS34 (GY) |
26 |
14401 |
| 5 |
SBP23 (WH-RD) |
22 |
|
| 6 |
CLF23 (WH-VT) |
22 |
3E605 |
| 6 |
CLF23 (WH-VT) |
26 |
14401 |
| 7 |
CLF19 (VT-GN) |
22 |
3E605 |
| 7 |
CLF19 (VT-GN) |
26 |
14401 |
| 8 |
CLN56 (BN-VT) |
22 |
3E605 |
| 8 |
CLN56 (BN-VT) |
26 |
14401 |
| 9 |
CRH04 (VT-GN) |
22 |
|
| 10 |
CAP18 (GN-OG) |
22 |
|
| 11 |
RAP18 (BN-BU) |
22 |
|
| 12 |
VDB05 (WH) |
22 |
|
| 13 |
CRW15 (BN-WH) |
22 |
3E605 |
| 13 |
CRW15 (BN-WH) |
26 |
14401 |
| 14 |
RLN29 (WH-OG) |
22 |
3E605 |
| 14 |
RLN29 (WH-OG) |
26 |
14401 |
| 15 |
CLF24 (YE-BU) |
22 |
3E605 |
| 15 |
CLF24 (YE-BU) |
26 |
14401 |
| 16 |
VDN05 (YE-GY) |
22 |
3E605 |
| 16 |
VDN05 (YE-GY) |
26 |
14401 |
| 17 |
CAP19 (GY-VT) |
22 |
|
| 18 |
CLN55 (YE-VT) |
22 |
3E605 |
| 18 |
CLN55 (YE-VT) |
26 |
14401 |
| 19 |
* |
* |
|
| 20 |
CBP35 (YE-GY) |
22 |
|
| 21 |
* |
* |
|
| 22 |
CET35 (BN) |
22 |
|
