Inline Connector End View (C238)
Inline Connector End View (C238)

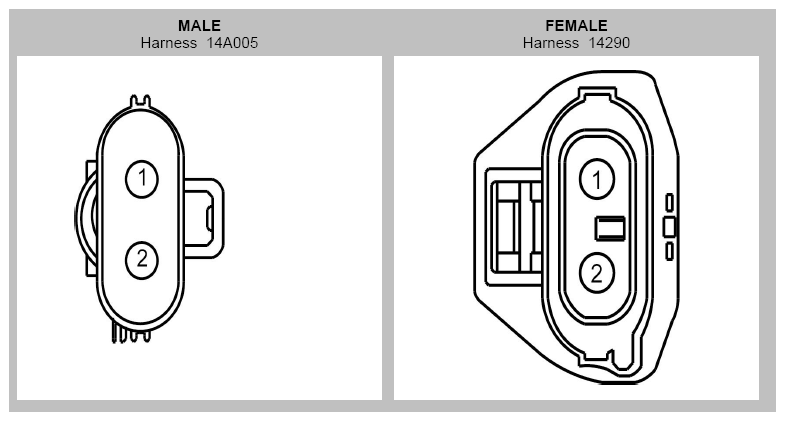

Fig 1: Identifying Inline Connector (C238)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Qualifier
1
SBB01 (RD)
10
2
SBB01 (RD)
10
14A005
2
SBB02 (YE-RD)
10
14290
