Inline Connector End View (C237)

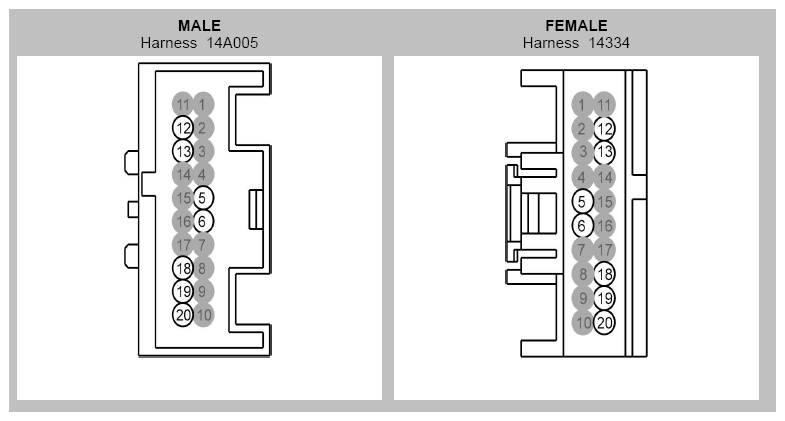

Fig 1: Identifying Inline Connector (C237)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	*	*
2	*	*
3	*	*
4	*	*
5	DMM23 (*)	18
6	VMM23 (BN-VT)	18	14A005
6	VMM23 (BN-VT)	22	14334
7	*	*
8	*	*
9	*	*
10	*	*
11	*	*
12	LRD12 (BU-GY)	22
13	RRD12 (BN)	22
14	*	*
15	*	*
16	*	*
17	*	*
18	DMP19 (*)	18
19	VMP19 (WH-GN)	22
20	RMP19 (BN-VT)	22
