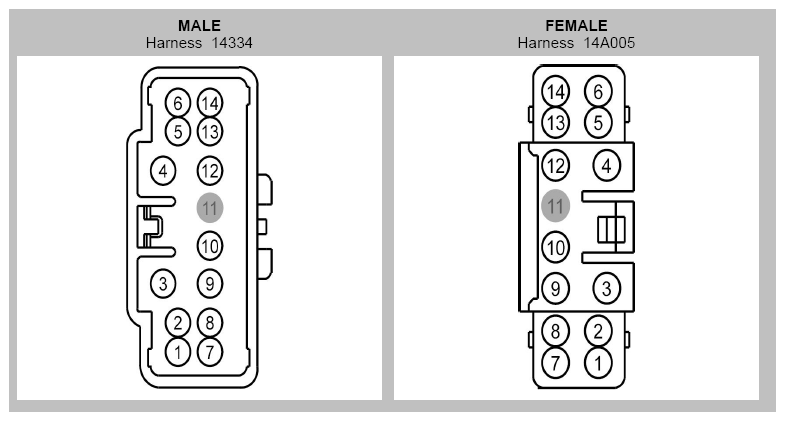

Inline Connector End View (C219)
| Pin | Circuit | Gauge | Qualifier |
|---|---|---|---|
| 1 | CBP34 (VT-BN) | 22 | |
| 2 | CBP38 (GY-BU) | 22 | |
| 3 | SBB08 (VT-RD) | 12 | |
| 4 | VDN05 (YE-GY) | 22 | |
| 5 | VDN01 (BU-WH) | 22 | |
| 6 | CBB45 (YE) | 22 | |
| 7 | CLN09 (YE-GN) | 22 | |
| 8 | CBP32 (BN-BU) | 18 | 14A005 |
| 8 | CPW01 (BN-BU) | 22 | 14334 |
| 9 | VLN33 (GY-VT) | 20 | |
| 10 | CLS28 (BU-WH) | 18 | 14A005 |
| 10 | CLS28 (BU-WH) | 20 | 14334 |
| 11 | * | * | |
| 12 | GD233 (BK) | 12 | |
| 13 | VDB04 (WH-BU) | 22 | |
| 14 | VDB05 (WH) | 22 |
