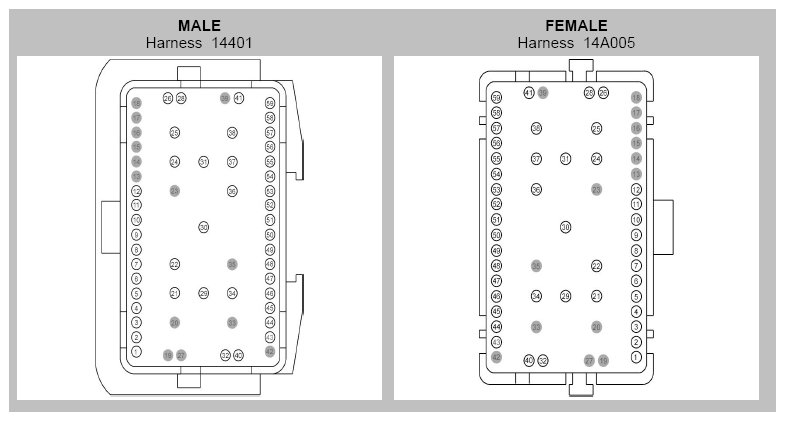

Inline Connector End View (C215)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPL45 (BN) |
22 |
|
| 2 |
CPK29 (GY-BU) |
22 |
|
| 3 |
CPK30 (VT-GN) |
22 |
|
| 4 |
CPK31 (YE-GN) |
22 |
|
| 5 |
CPK28 (WH-GN) |
22 |
|
| 6 |
RPK39 (VT-OG) |
22 |
|
| 7 |
VPK39 (GN-VT) |
22 |
14A005 |
| 7 |
VPK39 (GN-VT) |
26 |
14401 |
| 8 |
RME18 (YE) |
22 |
14A005 |
| 8 |
RME18 (YE) |
26 |
14401 |
| 9 |
VME18 (VT) |
22 |
14A005 |
| 9 |
VME18 (VT) |
26 |
14401 |
| 10 |
RME17 (GY) |
22 |
14A005 |
| 10 |
RME17 (GY) |
26 |
14401 |
| 11 |
VME17 (GN) |
22 |
14A005 |
| 11 |
VME17 (GN) |
26 |
14401 |
| 12 |
DME17 (*) |
18 |
|
| 13 |
* |
* |
|
| 14 |
* |
* |
|
| 15 |
* |
* |
|
| 16 |
* |
* |
|
| 17 |
* |
* |
|
| 18 |
* |
* |
|
| 19 |
* |
* |
|
| 20 |
* |
* |
|
| 21 |
CPL51 (BU-GN) |
18 |
|
| 22 |
CPL84 (GN-BN) |
18 |
|
| 23 |
* |
* |
|
| 24 |
VPK01 (BN-YE) |
22 |
|
| 25 |
RPK01 (WH-GN) |
22 |
|
| 26 |
RPK08 (BN-VT) |
22 |
|
| 27 |
* |
* |
|
| 28 |
VPK08 (WH-OG) |
22 |
|
| 29 |
SBP02 (YE-RD) |
18 |
|
| 30 |
SBP19 (BU-RD) |
16 |
|
| 31 |
SBP05 (GY-RD) |
16 |
|
| 32 |
CPL26 (GN-VT) |
22 |
|
| 33 |
* |
* |
|
| 34 |
VLN33 (GY-VT) |
20 |
|
| 35 |
* |
* |
|
| 36 |
GD233 (BK) |
22 |
|
| 37 |
RME06 (GY-YE) |
18 |
|
| 38 |
VME06 (GN) |
18 |
|
| 39 |
* |
* |
|
| 40 |
CBP38 (GY-BU) |
22 |
|
| 41 |
VLN49 (YE-GN) |
22 |
|
| 42 |
* |
* |
|
| 43 |
* |
* |
|
| 44 |
CBP32 (GN-VT) |
22 |
|
| 45 |
CLN09 (YE-GN) |
22 |
|
| 46 |
CMP18 (GN-BN) |
22 |
|
| 47 |
VDN01 (BU-WH) |
22 |
14A005 |
| 47 |
VDN01 (BU-WH) |
26 |
14401 |
| 48 |
VDB06 (GY) |
26 |
14401 |
| 48 |
VDB06 (GY-OG) |
22 |
14A005 |
| 49 |
VDB07 (VT) |
26 |
14401 |
| 49 |
VDB07 (VT-OG) |
22 |
14A005 |
| 50 |
RMC33 (WH-VT) |
22 |
14A005 |
| 50 |
RMC33 (WH-VT) |
26 |
14401 |
| 51 |
VMC23 (GN-OG) |
22 |
14A005 |
| 51 |
VMC23 (GN-OG) |
26 |
14401 |
| 52 |
CPL60 (BN-YE) |
22 |
14A005 |
| 52 |
CPL60 (BN-YE) |
26 |
14401 |
| 53 |
CPR88 (YE) |
20 |
14A005 |
| 53 |
CPR88 (YE) |
26 |
14401 |
| 54 |
RME80 (BU) |
26 |
14401 |
| 54 |
RME80 (BU-GY) |
22 |
14A005 |
| 55 |
VME80 (VT) |
26 |
14401 |
| 55 |
VME80 (VT-GN) |
22 |
14A005 |
| 56 |
DME80 (*) |
18 |
|
| 57 |
VLN50 (YE-BU) |
22 |
|
| 58 |
RLN44 (BN) |
22 |
|
| 59 |
VLN48 (YE-OG) |
22 |
|
