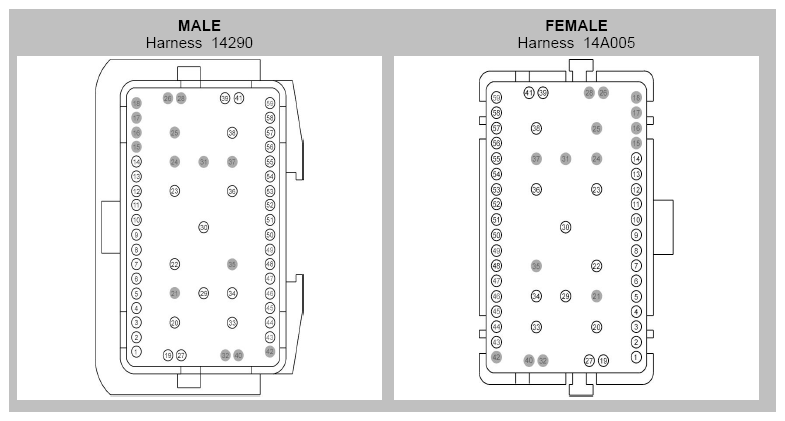

Inline Connector End View (C211)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VDB05 (WH) |
20 |
14290 |
| 1 |
VDB05 (WH) |
22 |
14A005 |
| 2 |
VDB04 (WH-BU) |
20 |
14290 |
| 2 |
VDB04 (WH-BU) |
22 |
14A005 |
| 3 |
CPL84 (GN-BN) |
18 |
|
| 4 |
CPL10 (GN-WH) |
18 |
|
| 5 |
VCA24 (GN-OG) |
20 |
14290 |
| 5 |
VCA24 (GN-OG) |
22 |
14A005 |
| 6 |
VCA23 (BU-WH) |
20 |
14290 |
| 6 |
VCA23 (BU-WH) |
22 |
14A005 |
| 7 |
RE230 (WH-VT) |
20 |
14290 - 2.0L GTDI |
| 7 |
RE230 (WH-VT) |
22 |
14A005 |
| 7 |
RE407 (YE-VT) |
20 |
14290 - TIVCT |
| 7 |
RE407 (YE-VT) |
22 |
14A005 |
| 8 |
VCA06 (WH-OG) |
20 |
14290 |
| 8 |
VCA06 (WH-OG) |
22 |
14A005 |
| 9 |
RCA20 (BN) |
20 |
14290 |
| 9 |
RCA20 (BN) |
22 |
14A005 |
| 10 |
VCA04 (BU-OG) |
20 |
14290 |
| 10 |
VCA04 (BU-OG) |
22 |
14A005 |
| 11 |
RCA18 (BN-GN) |
20 |
14290 |
| 11 |
RCA18 (BN-GN) |
22 |
14A005 |
| 12 |
LE230 (BN-BU) |
20 |
14290 |
| 12 |
LE230 (BN-BU) |
22 |
14A005 |
| 13 |
VE922 (VT-GN) |
20 |
14290 |
| 13 |
VE922 (VT-GN) |
22 |
14A005 |
| 14 |
CPL80 (WH-GN) |
18 |
|
| 15 |
* |
* |
|
| 16 |
* |
* |
|
| 17 |
* |
* |
|
| 18 |
* |
* |
|
| 19 |
CRD17 (GY) |
20 |
|
| 20 |
SBB08 (VT-RD) |
12 |
|
| 21 |
* |
* |
|
| 22 |
SBB23 (WH-RD) |
12 |
|
| 23 |
CBK03 (GY) |
16 |
14290 |
| 23 |
CBK03 (GY) |
18 |
14A005 |
| 24 |
* |
* |
|
| 25 |
* |
* |
|
| 26 |
* |
* |
|
| 27 |
CBK02 (GN) |
18 |
14A005 |
| 27 |
CBK02 (GN) |
18 |
14290 - GTDI |
| 27 |
SBB86 (BN-RD) |
20 |
14A005 |
| 27 |
SBB86 (BN-RD) |
20 |
14290 - TIVCT |
| 28 |
* |
* |
|
| 29 |
CRD06 (BN-YE) |
10 |
14290 |
| 29 |
CRD06 (BN-YE) |
12 |
14A005 |
| 30 |
CE608 (VT-GN) |
10 |
|
| 31 |
* |
* |
|
| 32 |
* |
* |
|
| 33 |
SBB80 (VT-RD) |
14 |
14290 |
| 33 |
SBB80 (VT-RD) |
16 |
14A005 |
| 34 |
SBB81 (RD) |
14 |
|
| 35 |
* |
* |
|
| 36 |
SBB42 (YE-RD) |
12 |
|
| 37 |
* |
* |
|
| 38 |
SBB21 (GY-RD) |
14 |
14290 |
| 38 |
SBB21 (GY-RD) |
16 |
14A005 |
| 39 |
VE727 (BU-BN) |
20 |
14290 |
| 39 |
VE727 (BU-BN) |
22 |
14A005 |
| 40 |
* |
* |
|
| 41 |
RMP07 (GN-WH) |
20 |
|
| 42 |
* |
* |
|
| 43 |
* |
* |
|
| 44 |
* |
* |
|
| 45 |
* |
* |
|
| 46 |
* |
* |
|
| 47 |
* |
* |
|
| 48 |
LMP07 (BU-WH) |
20 |
|
| 49 |
* |
* |
|
| 50 |
VMP21 (WH-BN) |
18 |
14290 |
| 50 |
VMP21 (WH-BN) |
22 |
14A005 |
| 51 |
VCF35 (GN) |
20 |
14290 |
| 51 |
VCF35 (GN) |
22 |
14A005 |
| 52 |
VCF34 (WH) |
20 |
14290 |
| 52 |
VCF34 (WH) |
22 |
14A005 |
| 53 |
VE225 (YE-OG) |
20 |
14290 |
| 53 |
VE225 (YE-OG) |
22 |
14A005 |
| 54 |
VE518 (BN-WH) |
20 |
14290 |
| 54 |
VE518 (BN-WH) |
22 |
14A005 |
| 55 |
VDN05 (YE-GY) |
20 |
14290 |
| 55 |
VDN05 (YE-GY) |
22 |
14A005 |
| 56 |
VMP20 (GY-OG) |
18 |
14290 |
| 56 |
VMP20 (GY-OG) |
22 |
14A005 |
| 57 |
CE114 (GN-BU) |
18 |
14290 |
| 57 |
CE114 (GN-BU) |
20 |
|
| 58 |
CBB45 (YE) |
20 |
14290 |
| 58 |
CBB45 (YE) |
22 |
14A005 |
| 59 |
* |
* |
|
