Inline Connector End View (C146)

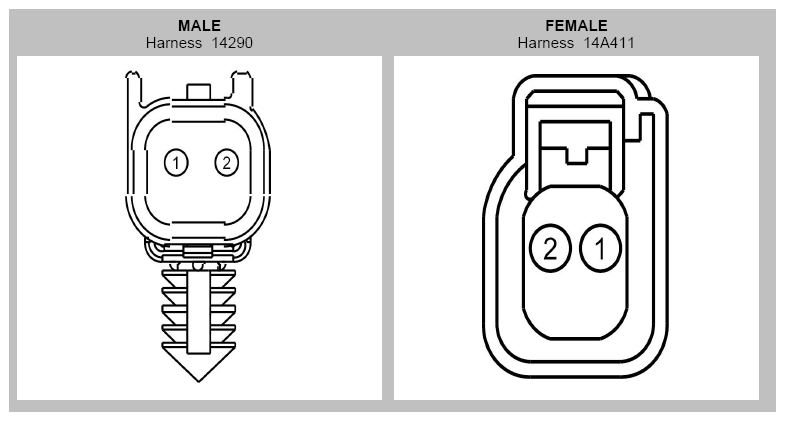

Fig 1: Identifying Inline Connector (C146)
G09130621Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Qualifier
1 VR213 (VT-GN) 18 14A411
1 VR213 (VT-GY) 20 14290
2 RR129 (YE-GY) 18 14A411
2 RR129 (YE-GY) 20 14290
