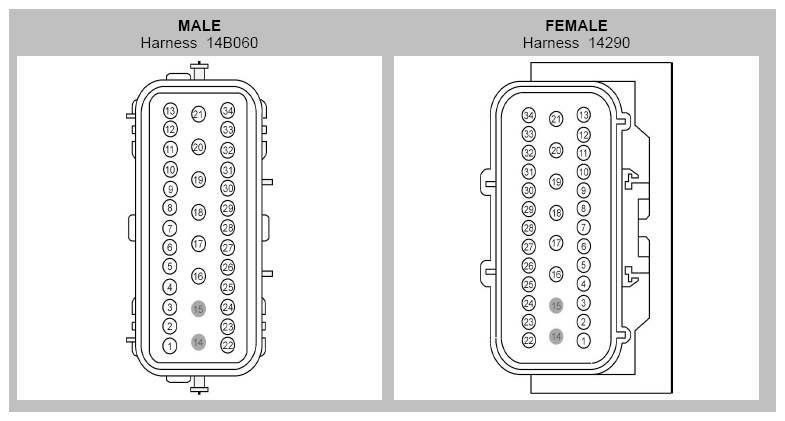

Inline Connector End View (C144)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
VE462 (WH) |
18 |
14B060 |
| 1 |
VE462 (WH-BN) |
20 |
14290 |
| 2 |
CBB89 (VT-GY) |
20 |
14B060 |
| 2 |
CBB92 (GN-WH) |
20 |
14290 |
| 3 |
CBB89 (VT-GY) |
20 |
14B060 |
| 3 |
CBB92 (GN-WH) |
20 |
14290 |
| 4 |
CBB67 (GN-BN) |
18 |
14B060 |
| 4 |
CBK02 (GN) |
18 |
14290 |
| 5 |
CBB89 (VT-GY) |
20 |
14290 |
| 5 |
CBB92 (GN-WH) |
20 |
14B060 |
| 6 |
CBB70 (YE) |
18 |
14B060 |
| 6 |
CBB70 (YE) |
18 |
14B060 |
| 6 |
CBB70 (YE-BU) |
20 |
14B060 |
| 6 |
CBK03 (GY) |
18 |
14290 |
| 7 |
CE171 (YE-VT) |
20 |
14290 |
| 7 |
VET27 (BN) |
18 |
14B060 |
| 7 |
VET27 (BN-YE) |
20 |
14290 |
| 8 |
CE148 (YE-GY) |
20 |
14B060 |
| 8 |
GD120 (BK-GN) |
16 |
14290 |
| 8 |
GD120 (BK-GN) |
4 |
14B060 |
| 9 |
VDC61 (VT-GN) |
20 |
|
| 10 |
LE424 (YE-GN) |
20 |
|
| 11 |
RE407 (YE-VT) |
18 |
14B060 |
| 11 |
RE407 (YE-VT) |
20 |
|
| 12 |
CDC10 (BU-OG) |
20 |
|
| 13 |
CDC15 (VT) |
20 |
|
| 14 |
* |
* |
|
| 15 |
* |
* |
|
| 16 |
CDC25 (BN-GN) |
12 |
14290 |
| 16 |
CDC25 (BN-GN) |
14 |
14B060 |
| 17 |
CH401 (VT) |
18 |
14B060 |
| 17 |
CH401 (VT-WH) |
16 |
14290 |
| 18 |
SBB58 (YE-RD) |
16 |
|
| 19 |
VDB04 (WH-BU) |
16 |
|
| 20 |
VDB05 (WH) |
16 |
|
| 21 |
GD120 (BK) |
18 |
14B060 |
| 21 |
GD120 (BK-GN) |
16 |
14290 |
| 22 |
VDB04 (WH-BU) |
20 |
|
| 23 |
VDB05 (WH) |
20 |
|
| 24 |
VDB04 (WH-BU) |
20 |
|
| 25 |
VDB05 (WH) |
20 |
|
| 26 |
SDC57 (BU-OG) |
20 |
|
| 26 |
SDC57 (OG-BU) |
20 |
14B060 |
| 26 |
SDC57 (OG-BU) |
20 |
14B060 |
| 27 |
LDC59 (BU-WH) |
20 |
|
| 27 |
LDC59 (WH-BU) |
20 |
14B060 |
| 28 |
RDC59 (GY-BN) |
20 |
|
| 29 |
CE233 (WH-OG) |
18 |
|
| 30 |
VE731 (YE-GN) |
18 |
|
| 31 |
CE234 (BU-WH) |
18 |
|
| 32 |
VE733 (WH) |
18 |
|
| 33 |
RE242 (GN) |
18 |
|
| 34 |
RE249 (WH-GN) |
18 |
|
