Impact Sensor, Driver Second Row Connector And View (C3248)

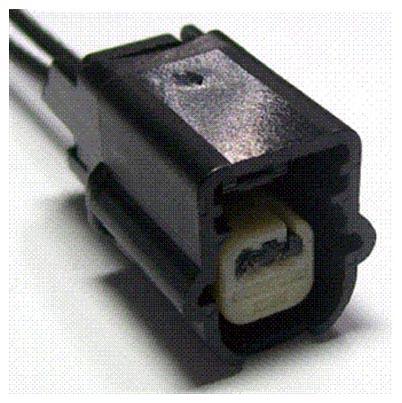

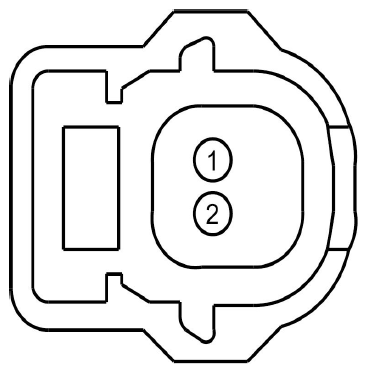

Fig 1: Identifying Impact Sensor (Driver Second Row) Connector (C3248)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VR219 (GN-WH)	18	SENSOR - SIDE IMPACT ROW 2 LH
2	RR133 (GY-BN)	18	SENSOR SIDE IMPACT ROW 2 LH-

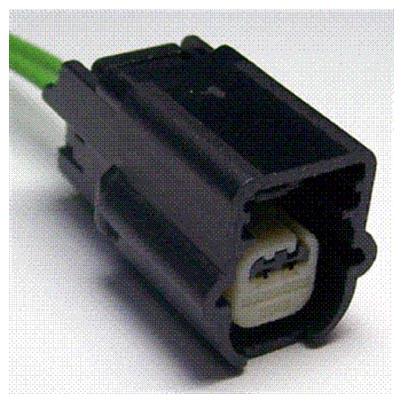

Available Pigtail Kits
Pigtail Kit Part Number WPT-1314	Service Part Number: 8U2Z-14S411-AAC  Gauge: 20  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Solenoid - Torque Control Coupling Valve - Heated PCV Valve - Heater Core Shut Off Valve - Transmission Fluid Warmer
Pigtail Kit Part Number WPT-1216	Service Part Number: 8U2Z-14S411-AAB  Gauge: 18  Pin material: Silver  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Seat Track Position Sensor - Side Impact Solenoid - Down Shift Valve - Heated PCV
Pigtail Kit Part Number WPT-1090	Service Part Number: AU2Z-14S411-YA  Gauge: 18  Pin material: Tin (greased)  Cavities: 2  Vehicle Uses Sensor - Crash (Engine Compartment) Sensor - Side Impact
