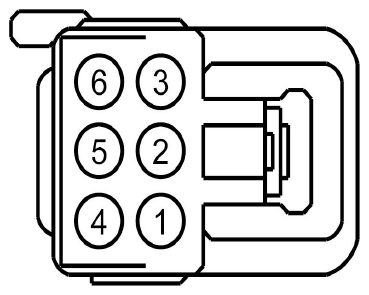

Heated Seat Module, Rear Connector And View (C3304B)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | SBB21 (GY-RD) | 16 | FUSE - 21 OR CIRCUIT BREAKER | |
| 2 | CBP34 (VT-BN) | 20 | FUSE - 34 OR CIRCUIT BREAKER | |
| 3 | SBB21 (GY-RD) | 16 | FUSE - 21 OR CIRCUIT BREAKER | |
| 4 | CHS58 (WH) | 18 | CTRL MOD. - REAR HEATED SEAT LEFT # CUSHION HEATER + | |
| 5 | GD348 (BK-YE) | 20 | GROUND - PILLAR C OR QUARTER PANEL RIGHT (BC3T) | |
| 6 | CHS54 (WH-GN) | 18 | CTRL MOD. - REAR HEATED SEAT RIGHT # CUSHION HEATER + |

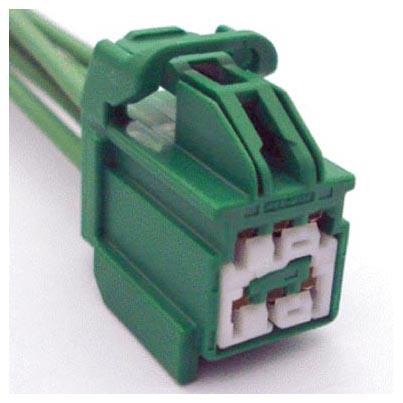

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1032 | Service Part Number: 9U2Z-14S411-XA Gauge: 14 Pin material: Silver Cavities: 6 Vehicle Uses
|
