Generator Connector End View (C102B)
Generator Connector End View (C102B)

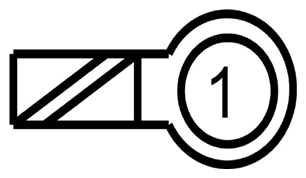

Fig 1: Identifying Generator Connector (C102B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
SDC14 (RD)
04
GENERATOR (ALTERNATOR)
Courtesy of FORD MOTOR CO.
