Front Corner Flashing Led, Left Connector And View (C1705)

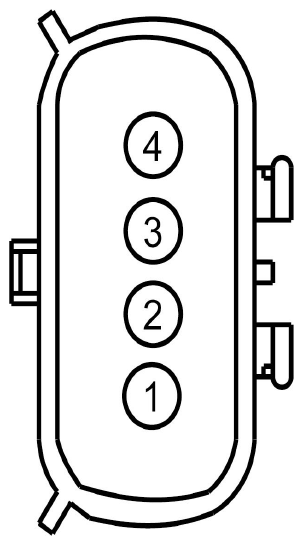

Fig 1: Identifying Front Corner Flashing Led (Left) Connector (C1705)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CAP12 (VT-OG)	20	POLICE - FLASHER REAR LEFT
2	CAP14 (GY-BN)	20	POLICE - BUTTON FUNCTION 1
3	CAP06 (GY-OG)	20	POLICE - WIGWAG SYNC
4	GD123 (BK-GY)	20	GROUND - FENDER FRONT RIGHT
