DECKLID Flashing Led, Left Connector And View (C4806)

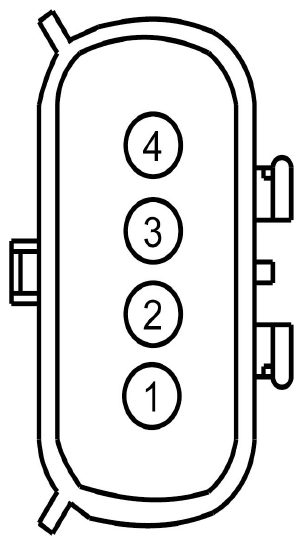

Fig 1: Identifying Decklid Flashing LED (Left) Connector (C4806)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	CAP11 (BU-GY)	20	POLICE - LAMP PACKAGE TRAY RIGHT
2	CAP14 (GY-BN)	22	POLICE - BUTTON FUNCTION 1
3	CAP06 (GY-OG)	22	POLICE - WIGWAG SYNC
4	GD312 (BK)	20	GROUND - PILLAR C OR QUARTER PANEL LEFT # 2ND POINT
