Brake Shift Interlock Connector And View (C2008)

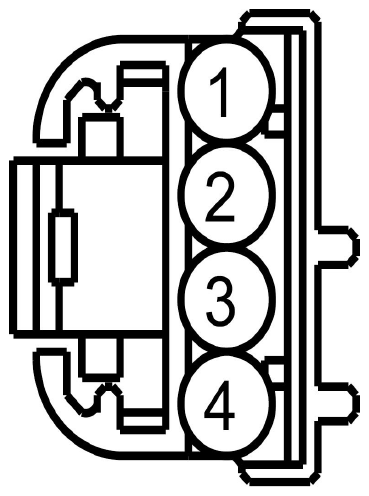

Fig 1: Identifying Brake Shift Interlock Connector (C2008)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	GD233 (BK)	22	GROUND - COWL SIDE/PILLAR A LEFT (BC3T)
2	CET52 (GN)	22	SWITCH - TRANSMISSION PARK DETECT
3	CDC41 (WH-BN)	22	SWITCH - SOLENOID KEY LOCK (INHIBIT REMOVAL)
4	CET53 (BU-OG)	22	CTRL MOD. - POWERTRAIN # BRAKE SHIFT INTERLOCK

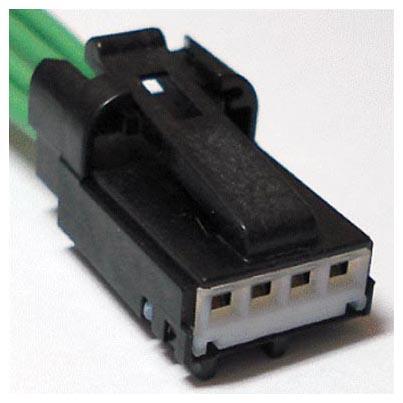

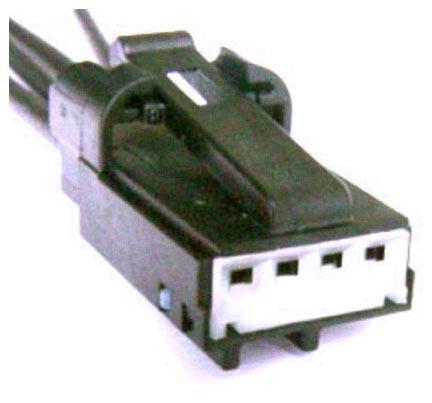

Available Pigtail Kits
Pigtail Kit Part Number WPT-874	Service Part Number: 6U2Z-14S411-JA  Gauge: 18  Pin material: Tin  Cavities: 4  Vehicle Uses Relay - Oil Level Sensor - Compass Sensor - Turbine Shaft Speed Sensor - Turbo Intake Pressure/Temperature
Pigtail Kit Part Number WPT-982	Service Part Number: 6U2Z-14S411-JB  Gauge: 18  Pin material: Silver  Cavities: 4  Vehicle Uses Module - Auto Lamps Module - Front Interface Sensor - EATC In Car Temperature Sensor - Sunload Solenoid - Brake Shift Park Interlock Switch - Door Lock (LH) Switch - Door Lock (RH)
