Battery Current Sensor: Notes

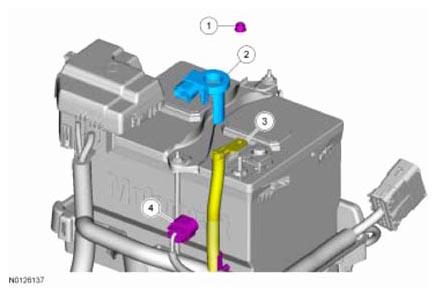

G08035436
Item Part Number Description
1 - Battery terminal nut (part of 14B060) - 9 Nm (80 lb-in)
2 14B357 Battery current sensor
3 - Negative battery cable terminal (part of 14B060)
4 - Battery current sensor electrical connector (part of 14B060)
