Window Adjust Switches, Left And Right Rear: Schematic

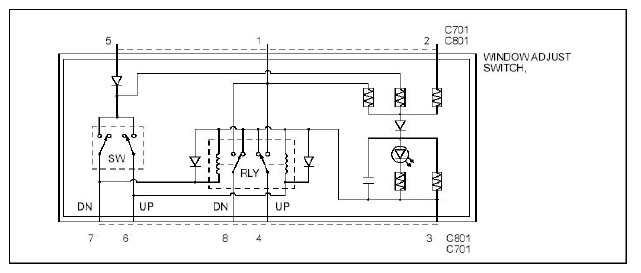

Fig 1: Window Adjust Switches, Left And Right Rear Schematic

G09129026

Courtesy of FORD MOTOR CO.
