OEM Ground Distribution: Grounds: G302

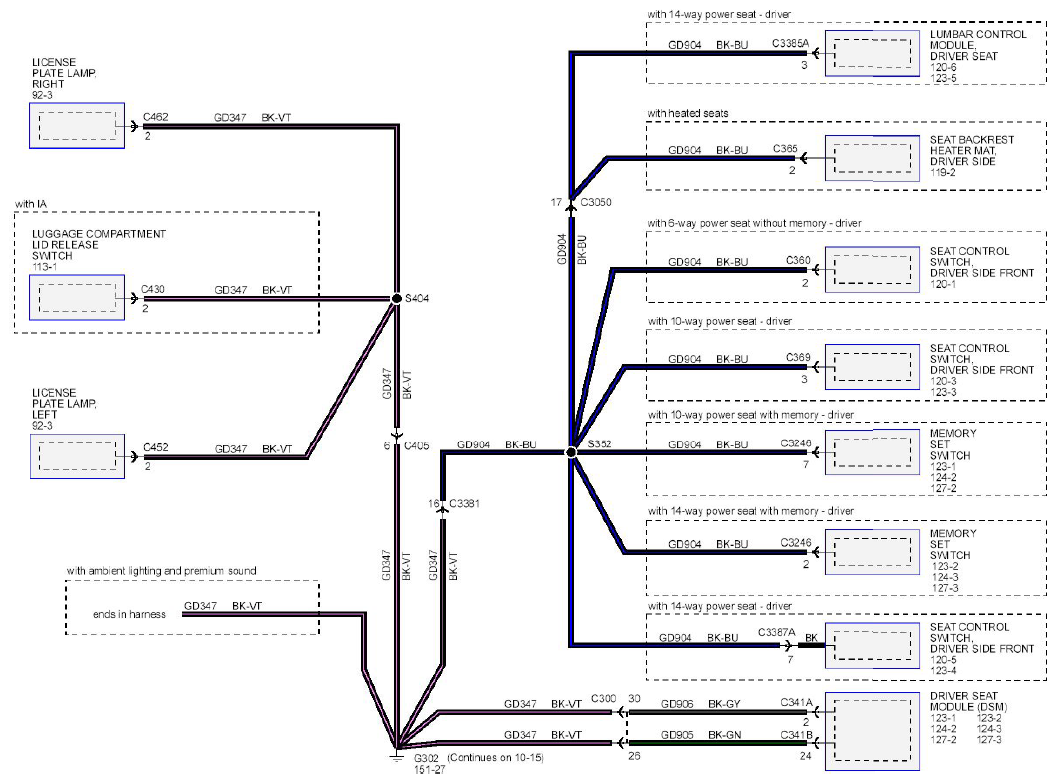

Fig 1: Ground System (G302) Wiring Diagram (1 Of 3)
G09128701Courtesy of FORD MOTOR CO.

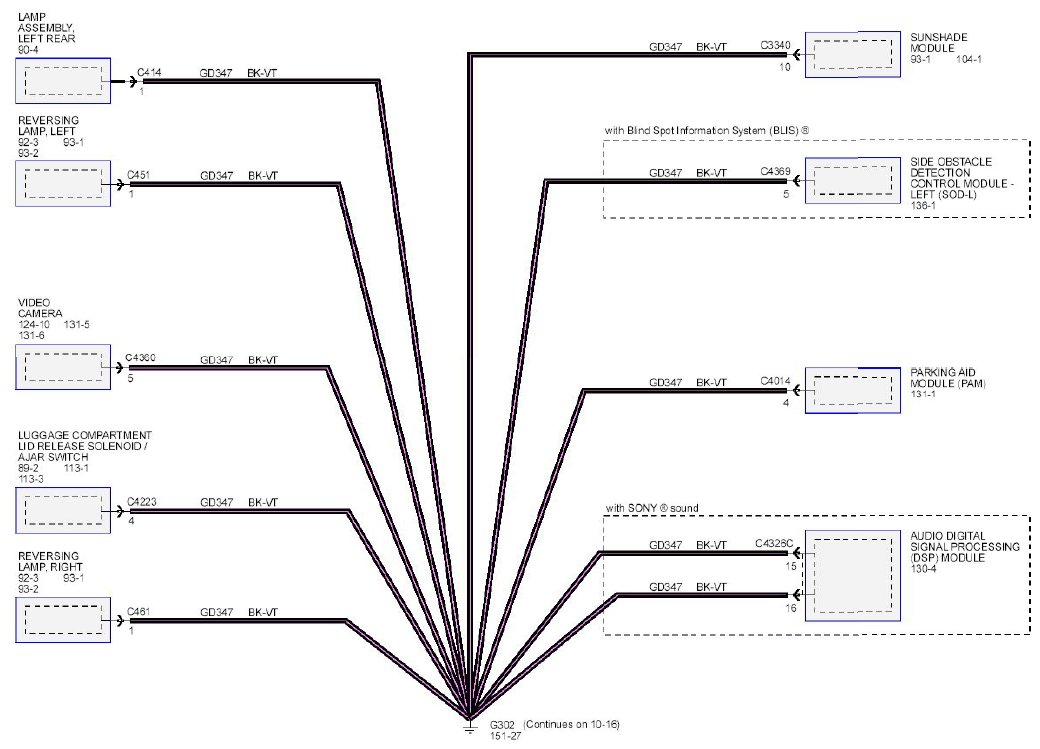

Fig 2: Ground System (G302) Wiring Diagram (2 Of 3)
G09128702Courtesy of FORD MOTOR CO.

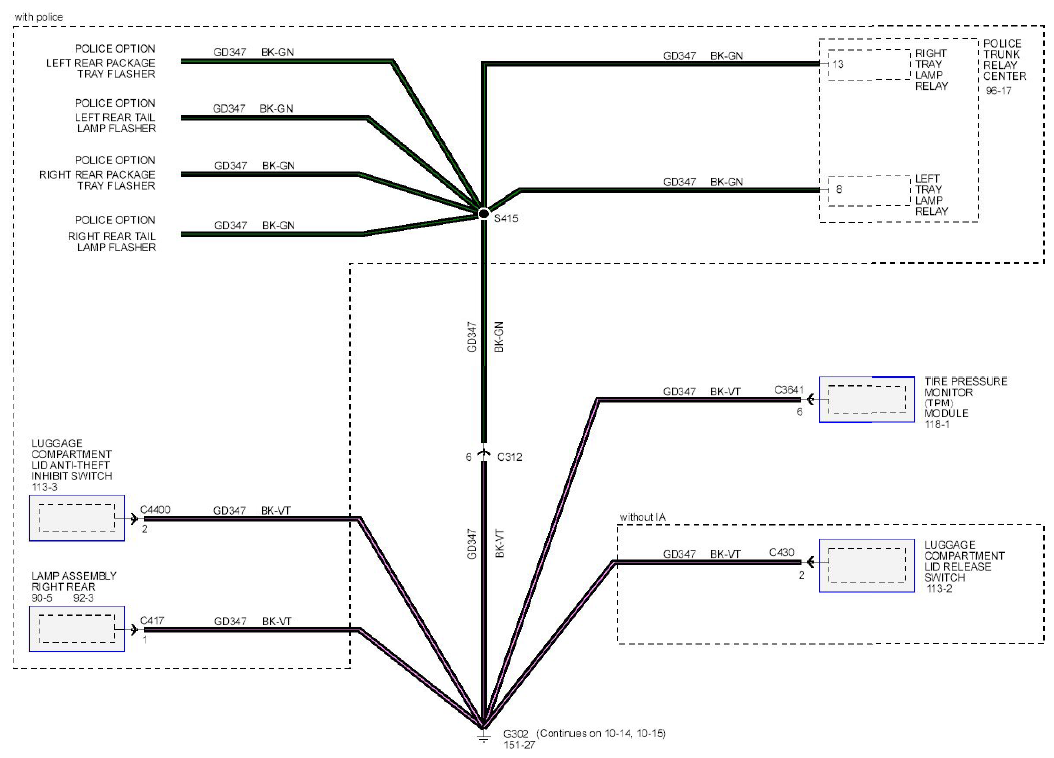

Fig 3: Ground System (G302) Wiring Diagram (3 Of 3)
G09128703Courtesy of FORD MOTOR CO.
