OEM Ground Distribution: Grounds: G301

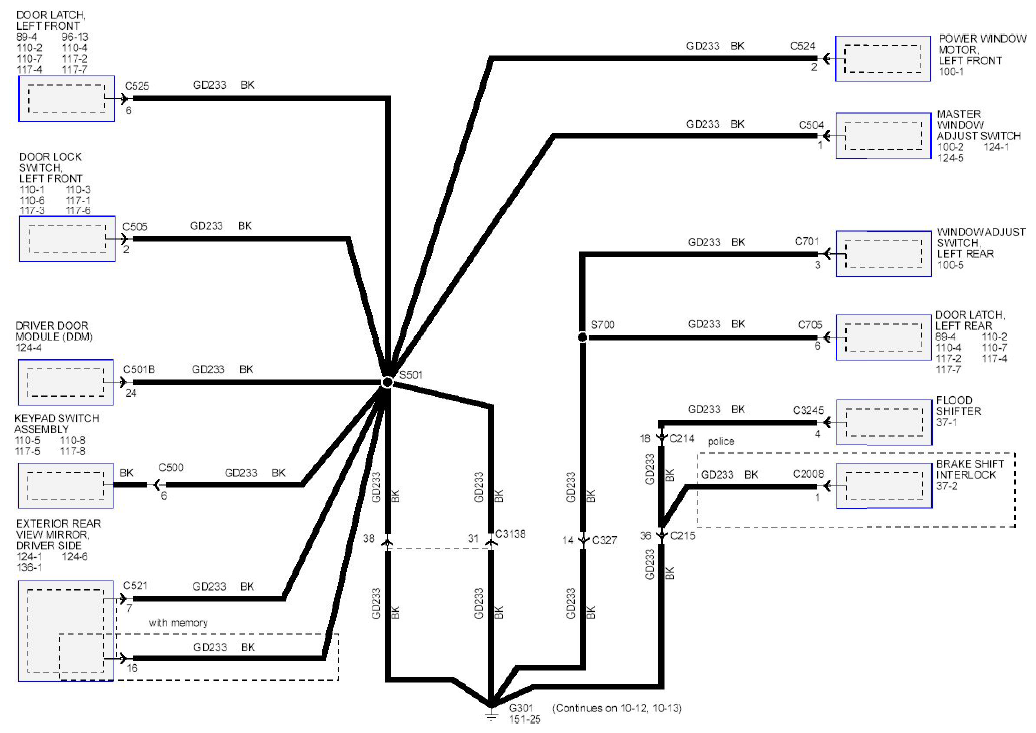

Fig 1: Ground System (G301) Wiring Diagram (1 Of 3)
G09128698Courtesy of FORD MOTOR CO.
Fig 2: Ground System (G301) Wiring Diagram (2 Of 3)
G09128699Courtesy of FORD MOTOR CO.
Fig 3: Ground System (G301) Wiring Diagram (3 Of 3)
G09128700Courtesy of FORD MOTOR CO.
