OEM Ground Distribution: Grounds: G201

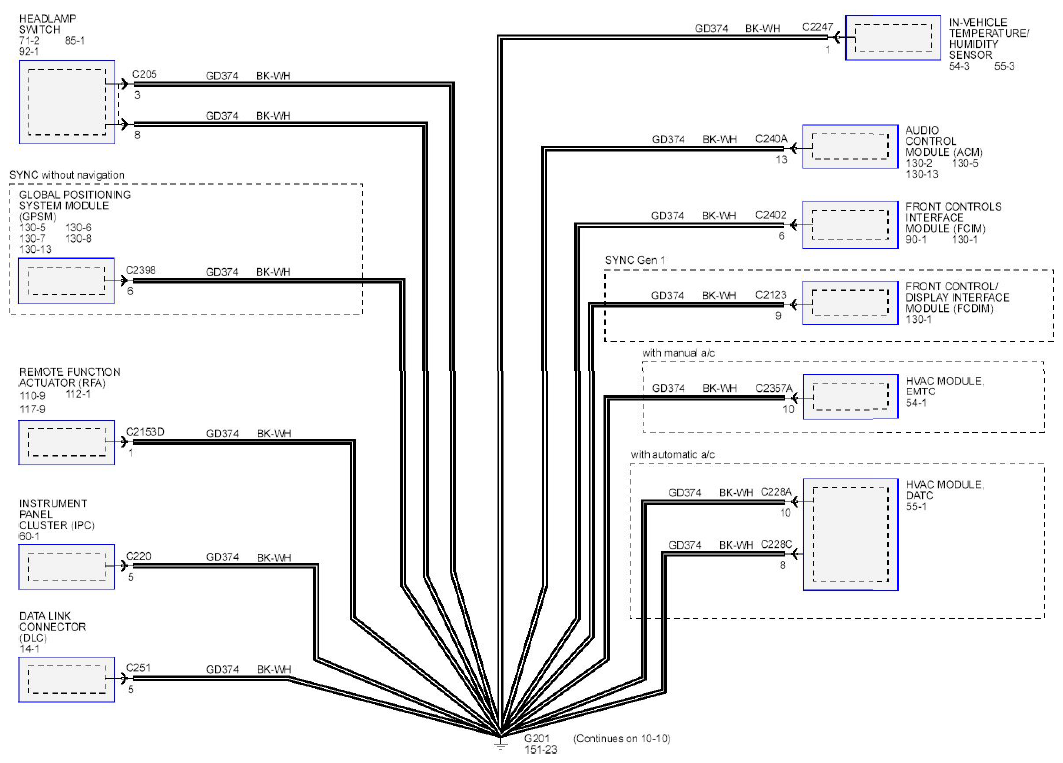

Fig 1: Ground System (G201) Wiring Diagram (1 Of 2)

G09128696

Courtesy of FORD MOTOR CO.

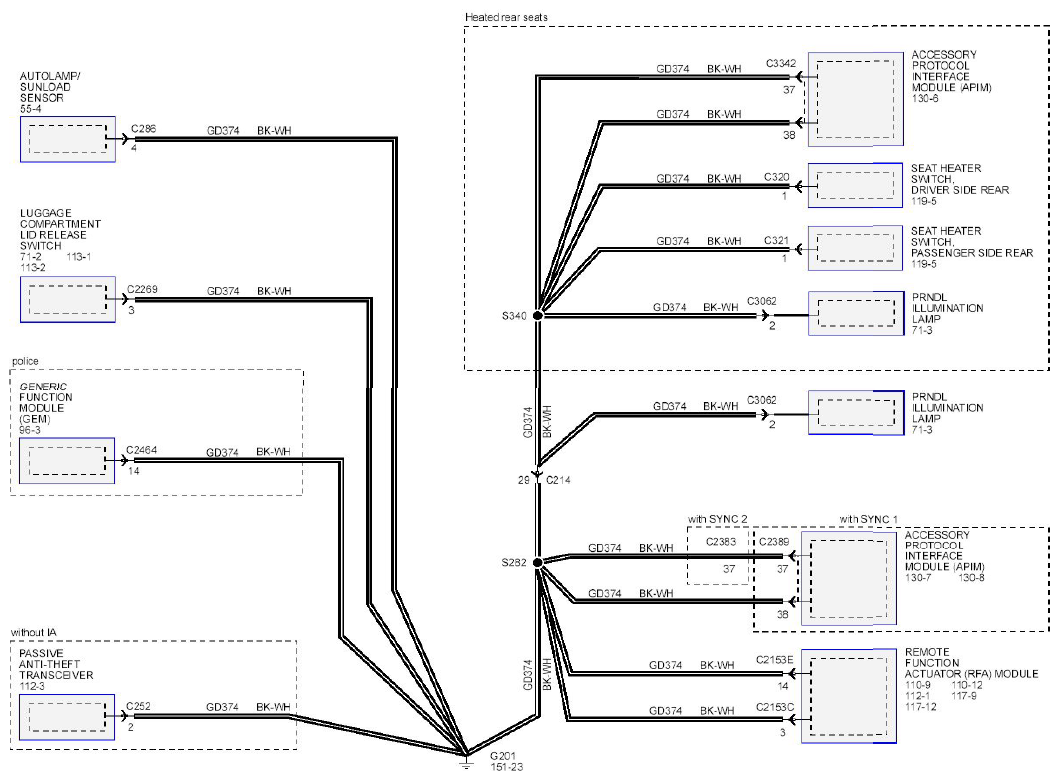

Fig 2: Ground System (G201) Wiring Diagram (2 Of 2)

G09128697

Courtesy of FORD MOTOR CO.
