OEM Ground Distribution: Grounds: G101

Fig 1: Ground System (G101) Wiring Diagram (1 Of 2)

G09128689

Courtesy of FORD MOTOR CO.

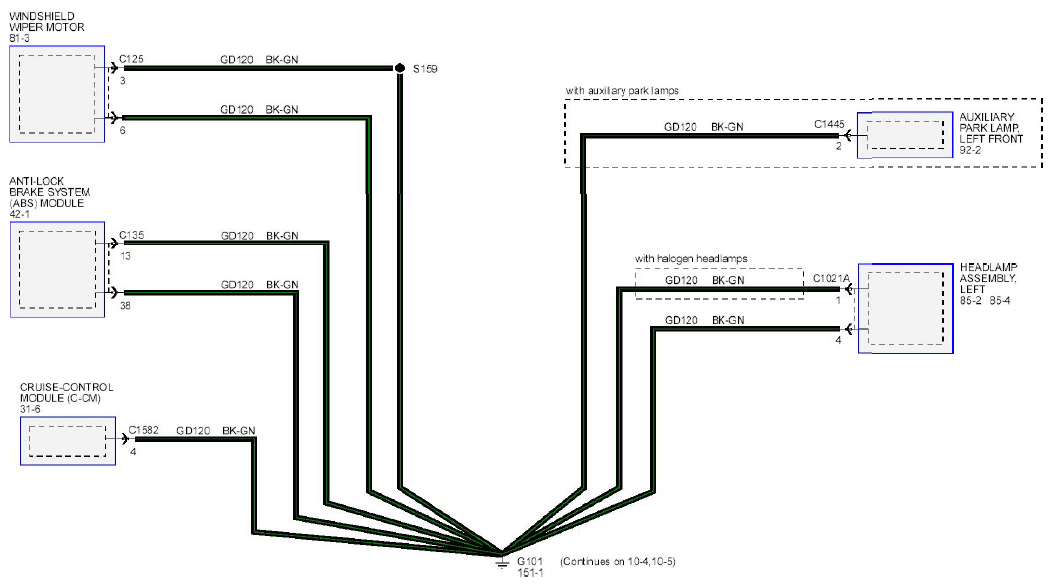

Fig 2: Ground System (G101) Wiring Diagram (2 Of 2)

G09128690

Courtesy of FORD MOTOR CO.
