OEM Ground Distribution: Grounds: G100

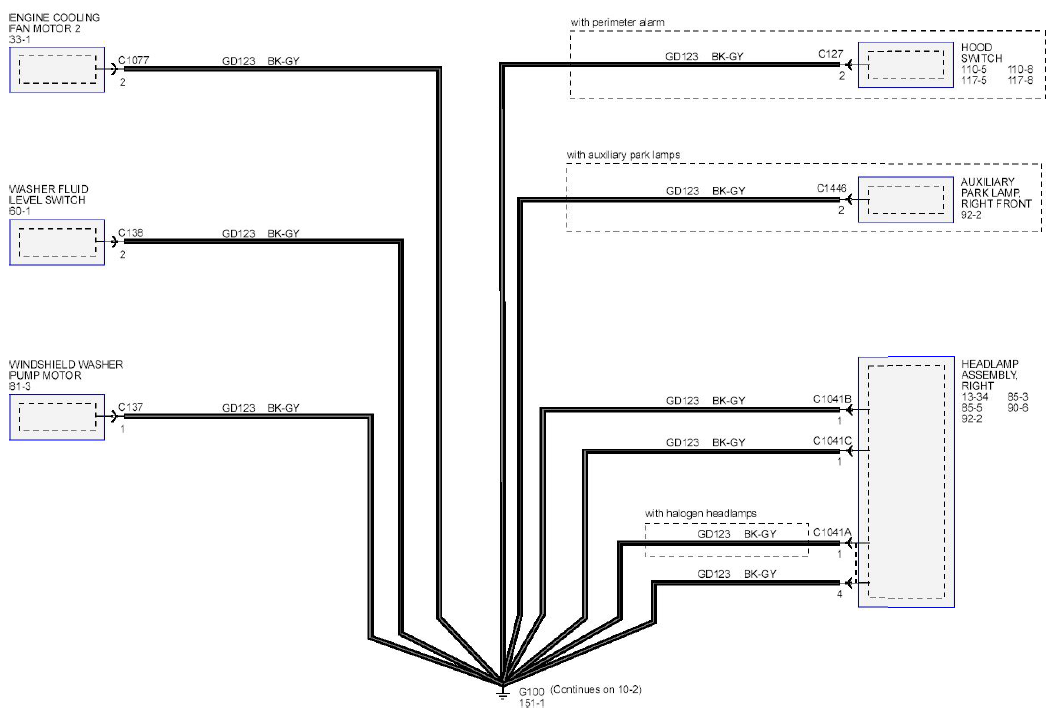

Fig 1: Ground System Wiring Diagram (G100)

G09128688

Courtesy of FORD MOTOR CO.
