Removal and Installation

Seats without Active Motion® massage

1. Pry the bezel up from the cushion side shield, disconnect the electrical connector, release the tabs and remove the memory SET switch.
   Fig 1: Locating Memory SET Switch

   Courtesy of FORD MOTOR CO.

   Seats with Active Motion® massage

2. At the rear of the seat, detach the carpet flap toe-kick retainers from under the seat.
   Fig 2: Locating Carpet Flap Toe-Kick Retainers

   Courtesy of FORD MOTOR CO.
3. From the front of the seat, detach the wire harness retainer and disconnect the seat control switch electrical connectors.
   Fig 3: Locating Seat Control Switch Electrical Connectors And Wire Harness

   Courtesy of FORD MOTOR CO.
4. Remove the cushion side shield from the cushion.
   1. Remove the screw from the front of the cushion side shield.
   2. Remove the scrivet from the rear of the cushion side shield.

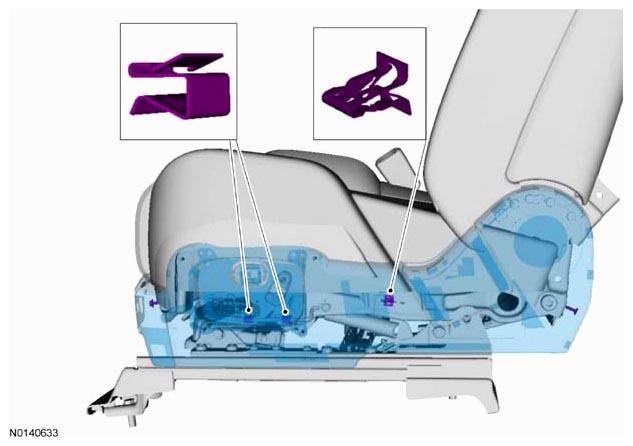

   3. Detach the cushion side shield retainers from the cushion.
5. Detach the clips and remove the memory SET switch.

   All seats

6. To install, reverse the removal procedure.
