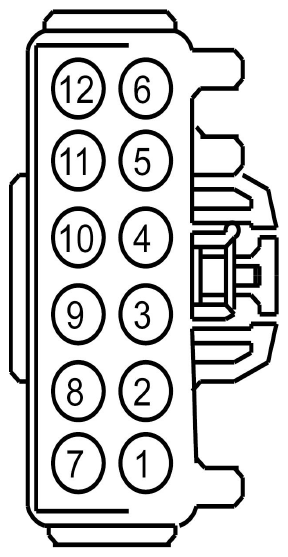

Seat Control Switch, Passenger Side Front Connector End View (C330)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CPS36 (YE-GY) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT DOWN | |
| 2 | CPS34 (GY-BU) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) DOWN | |
| 3 | GD903 (BK-WH) | 14 | GROUND - PASSENGER SEAT # SEAT SWITCH | |
| 4 | CPS33 (WH) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER FORWARD | |
| 5 | CBX05 (VT-RD) | 14 | POWER - SEAT # POWER SEAT SWITCH | |
| 6 | CPS35 (VT-GN) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER FRONT HEIGHT (TILT) UP | |
| 7 | CPS21 (WH-OG) | 20 | SWITCH - FRONT PASSENGER LUMBAR SOLENOID (UPPER CELL) DEFLATE | |
| 8 | CPS40 (VT-GY) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE REARWARD | |
| 9 | CPS38 (GN-BU) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER REARWARD | |
| 10 | CPS20 (VT) | 20 | SWITCH - FRONT PASSENGER LUMBAR PUMP | |
| 11 | CPS39 (GY-YE) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER RECLINE FORWARD | |
| 12 | CPS37 (WH-BU) | 16 | SWITCH - SEAT ADJUST. FRONT PASSENGER REAR HEIGHT UP |
| Available Pigtail Kits | |

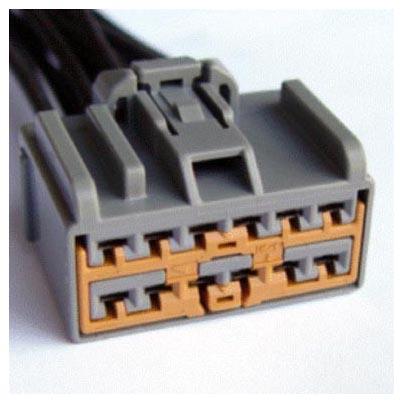

| Pigtail Kit Part Number WPT-396 | Service Part Number: 3U2Z-14S411-BKA Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses
|
