Power Steering Control Module (PSCM) Connector And View (C1467B)

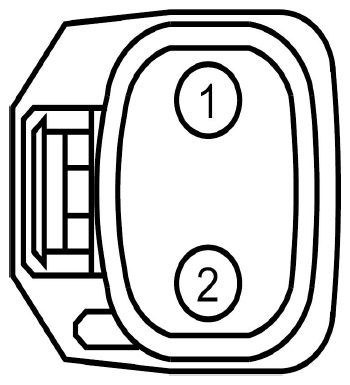

Fig 1: Identifying Power Steering Control Module (PSCM) Connector (C1467B)
G09131048Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF04 (GN-RD) 8 FUSE - 4
2 GD178 (BK-VT) 8 GROUND - CHASSIS/BATTERY #2
