Defective Insulation Stripping

  1. Proper crimp
  2. Insulation not removed
  3. Wire strands missing
  4. Intermittent signals through pierced insulation

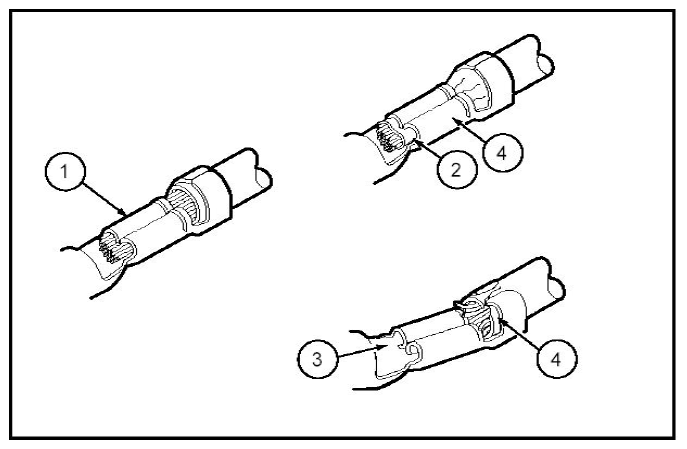

    Fig 1: Identifying Defective Insulation Stripping
    G09091980Courtesy of FORD MOTOR CO.
