Selector Lever: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .
  2. Discard the specified component. Follow local disposal regulations.

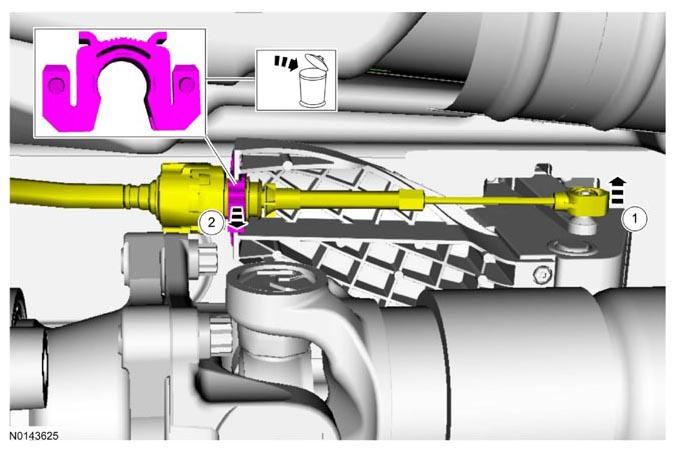

    G07990552
  3. G08644907
  4. Interior trim remover.

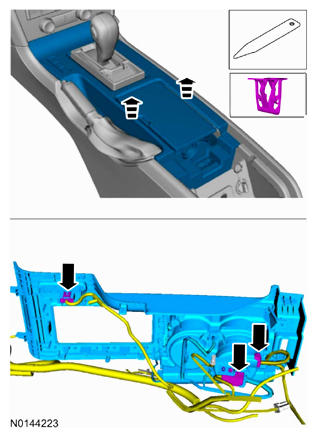

    G08644908
  5. G07488530
  6. G08644910
  7. G08644911
  8. G08644912
