OEM Ground Distribution: Grounds: G402

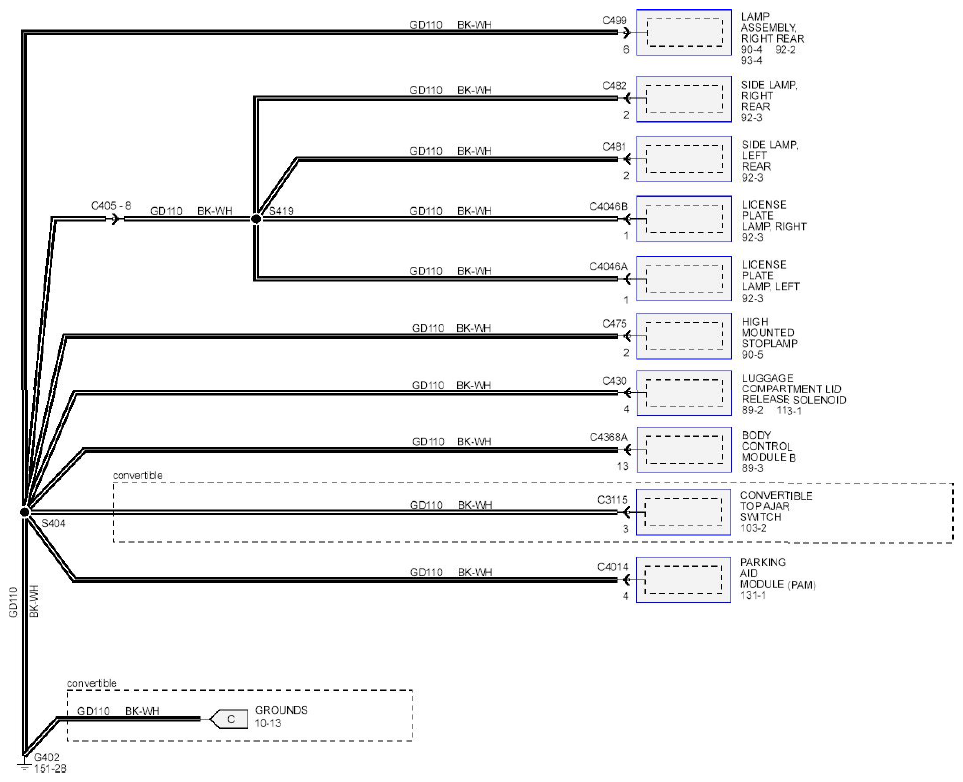

Fig 1: Grounds System - Wiring Diagram (G402; 1 Of 2)

G09092010

Courtesy of FORD MOTOR CO.

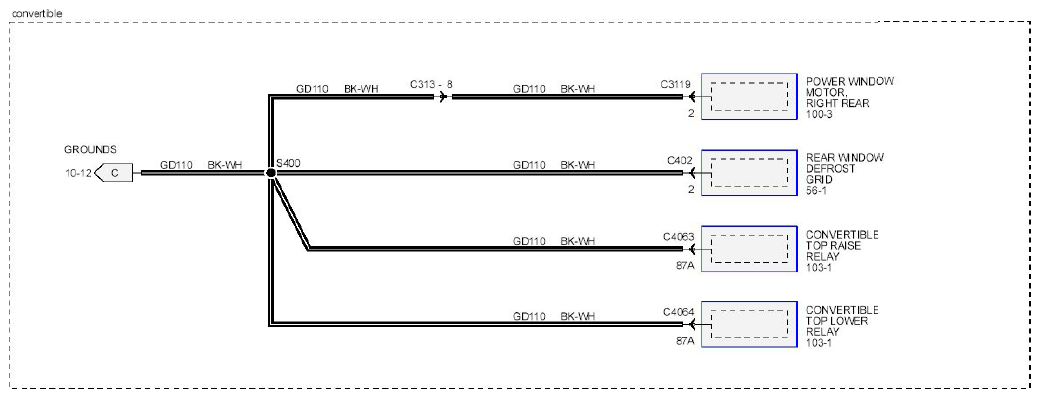

Fig 2: Grounds System - Wiring Diagram (G402; 2 Of 2)

G09092011

Courtesy of FORD MOTOR CO.
