OEM Ground Distribution: Grounds: G205

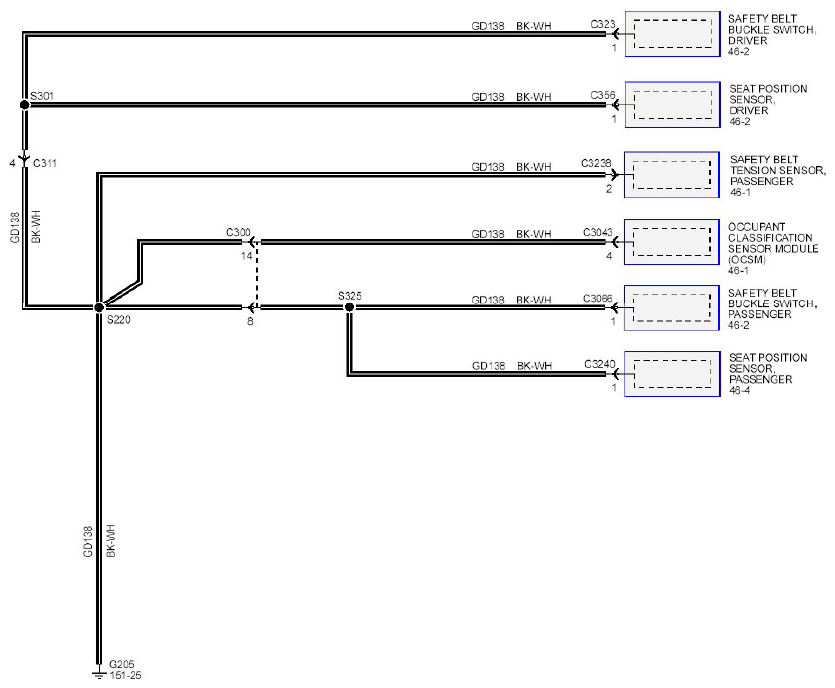

Fig 1: Grounds System - Wiring Diagram (G205)

G09092008

Courtesy of FORD MOTOR CO.
