OEM Ground Distribution: Grounds: G100

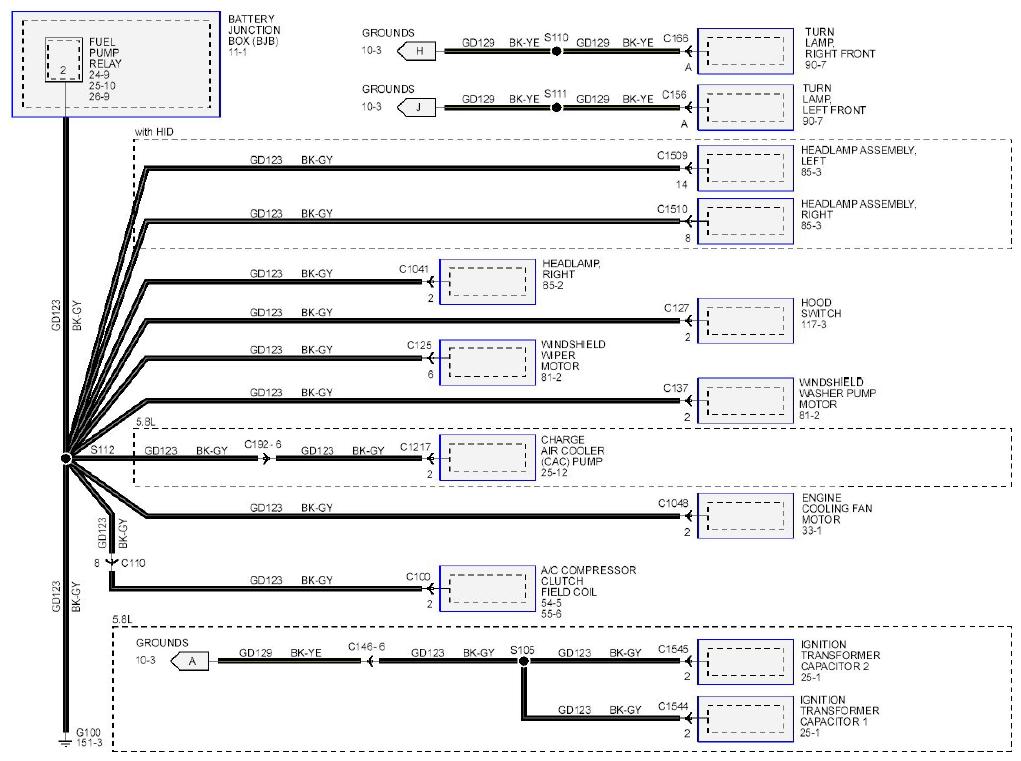

Fig 1: Grounds System - Wiring Diagram (G100)

G09092000

Courtesy of FORD MOTOR CO.
