Mustang Base, 2D Convertible, Automatic Trans
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Power Distribution/SJB
>>
Notes
Power Distribution/SJB: Notes

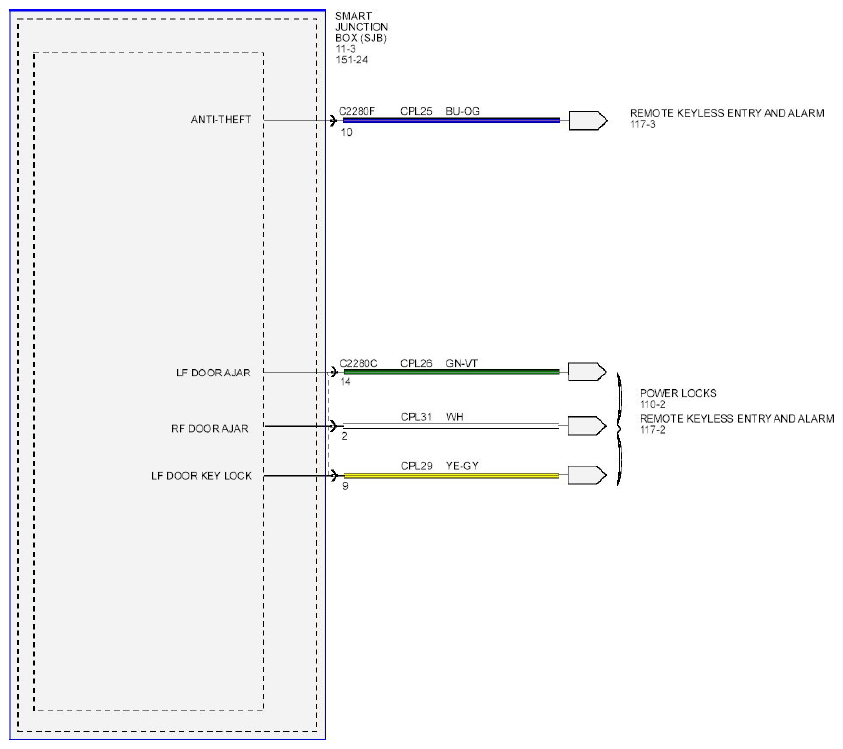

Fig 1: Power Distribution/SJB - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

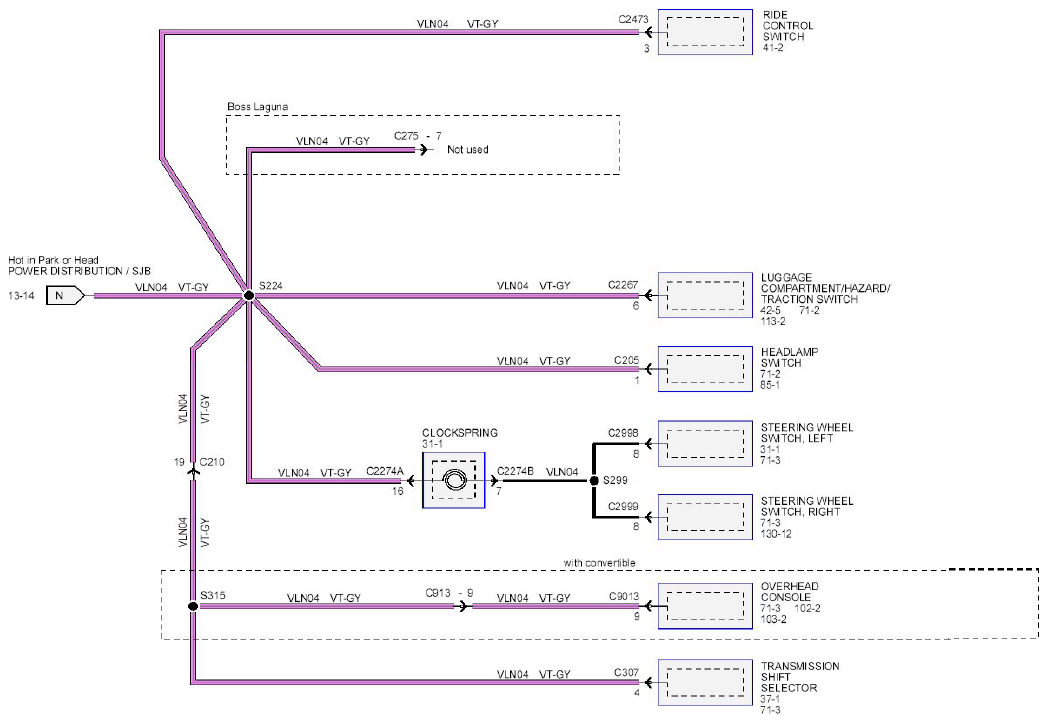

Fig 2: Power Distribution/SJB - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

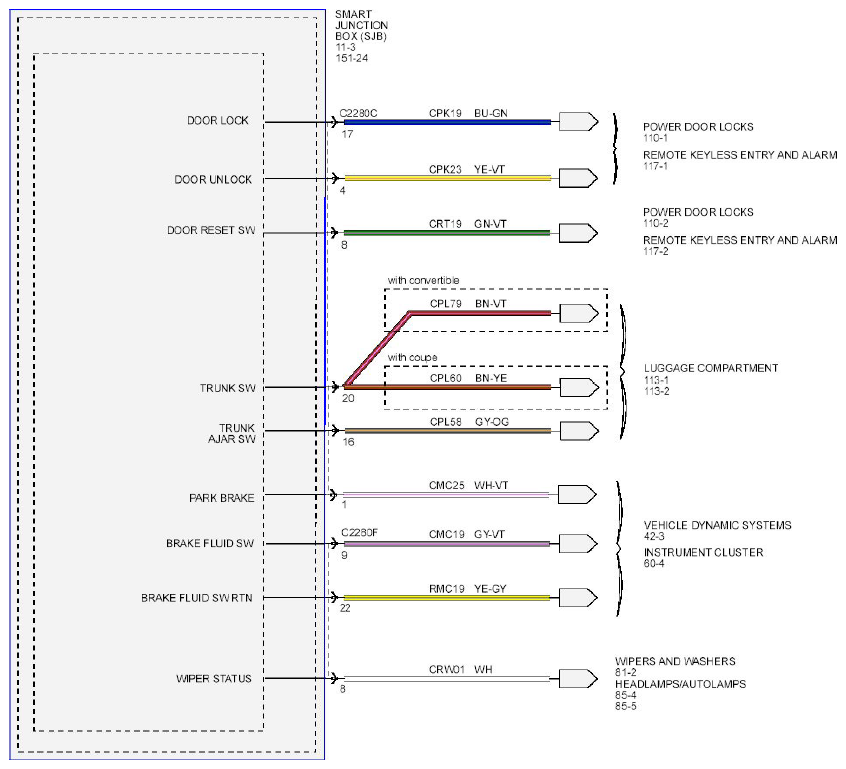

Fig 3: Power Distribution/SJB - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

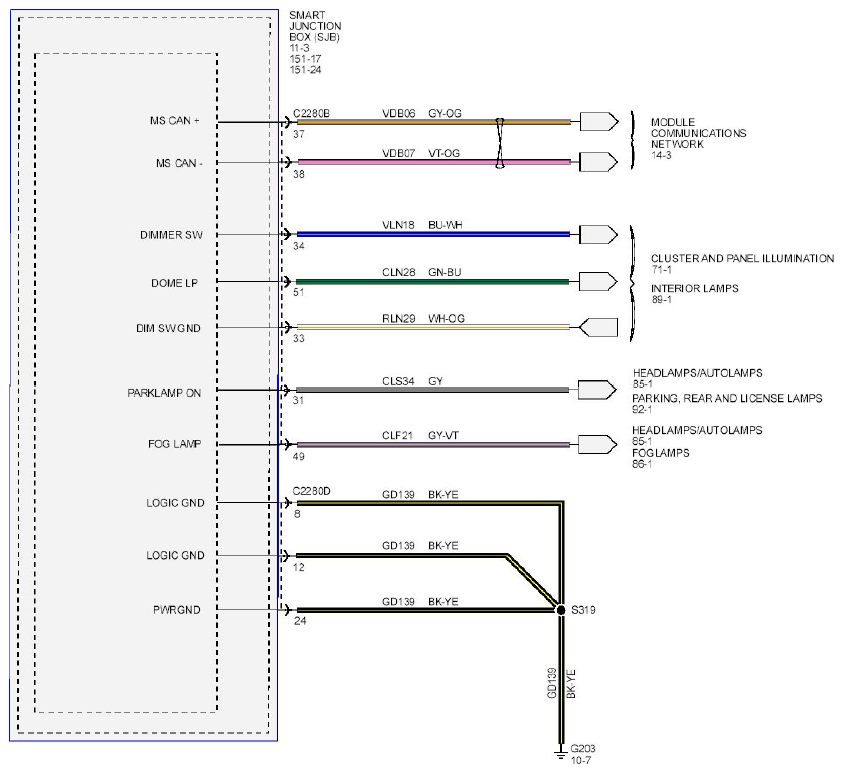

Fig 4: Power Distribution/SJB - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

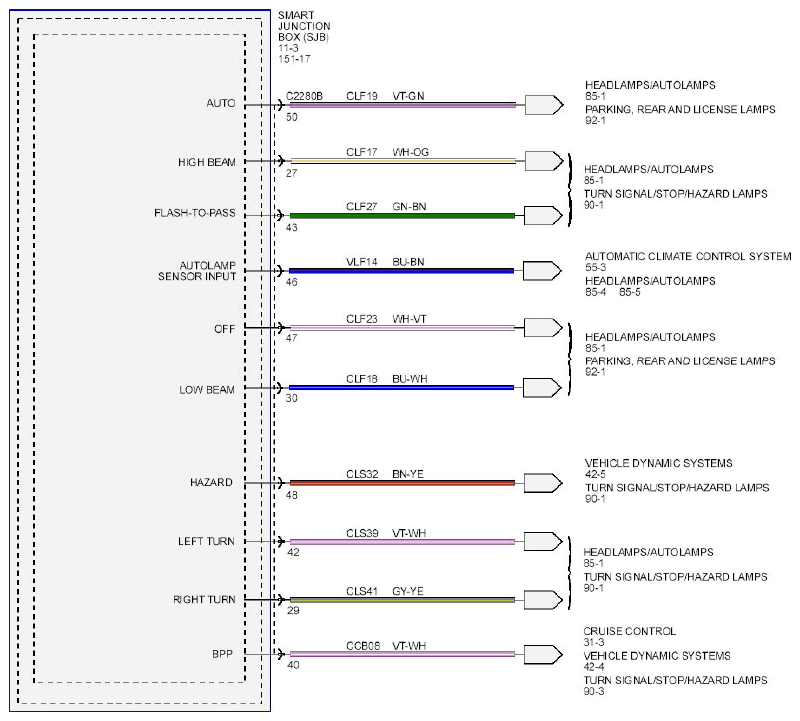

Fig 5: Power Distribution/SJB - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

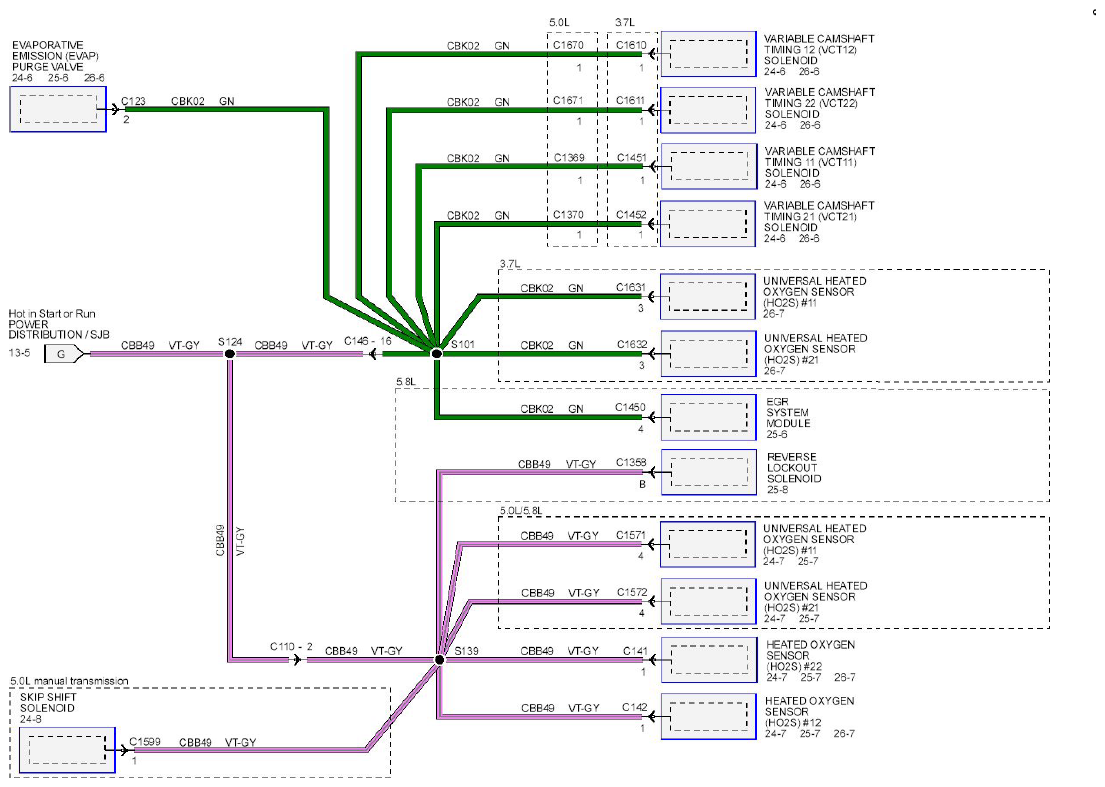

Fig 6: Power Distribution/SJB - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
