Clutch System Bleeding: Bleeding

WARNING: This page is about a different variant/trim than selected.
WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.
  1. Refer to: HEALTH AND SAFETY PRECAUTIONS . Refer to: BRAKE AND CLUTCH SYSTEMS HEALTH AND SAFETY PRECAUTIONS .
  2. NOTE: Make sure that the brake fluid level does not drop below the MIN mark.
    G08064484
  3. If equipped.

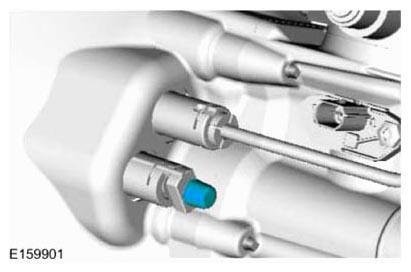

    G08637691
  4. Install the following items:
    • General Equipment  : Brake/Clutch System Pressure Bleeder/Filler

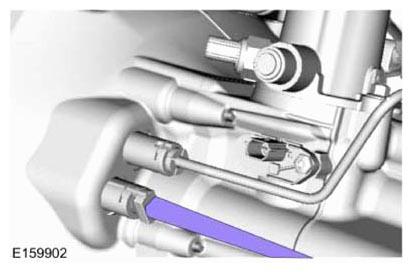

      G08637692
    1. If equipped.
    2. Refer to: SPECIFICATIONS .

      General Equipment  : Brake/Clutch System Pressure Bleeder/Filler

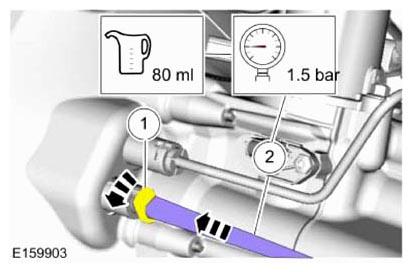

      G08637693
    1. If equipped.

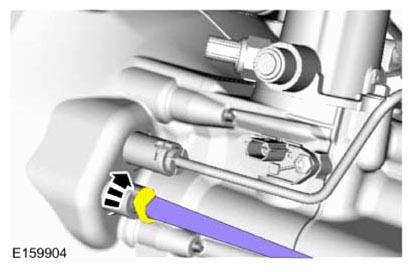

      G08637694
  7. Remove the following items:
    • General Equipment  : Brake/Clutch System Pressure Bleeder/Filler
      G08637692
  8. If equipped.
    G08637691
  9. In order to remove any small amounts of trapped air remaining in the system, operate the clutch pedal 5 times, using the full clutch pedal travel.
    G08064491
  10. NOTE: Make sure that fluid level is to the MAX mark.

    Material  : Motorcraft® DOT 4 LV High Performance Motor Vehicle Brake Fluid/PM-20 (WSS-M6C65-A2) (ISO 4925 Class 6)

    G08064492
  11. Start the engine.
  12. Check the operation of the clutch. If reverse gear engagement is excessively noisy, operate the clutch pedal 5 times, using the full clutch pedal travel.
    G08064493
  13. After waiting approximately 30 sec., check the operation of the clutch again. If reverse gear engagement is still excessively noisy, repeat the bleeding procedure.
